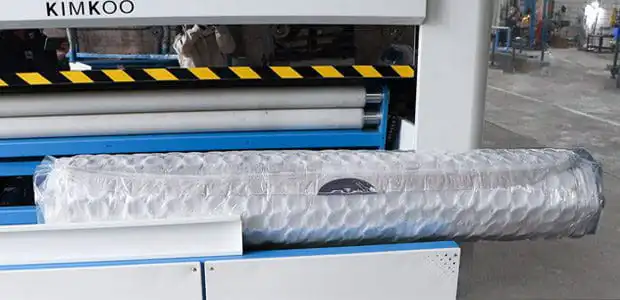

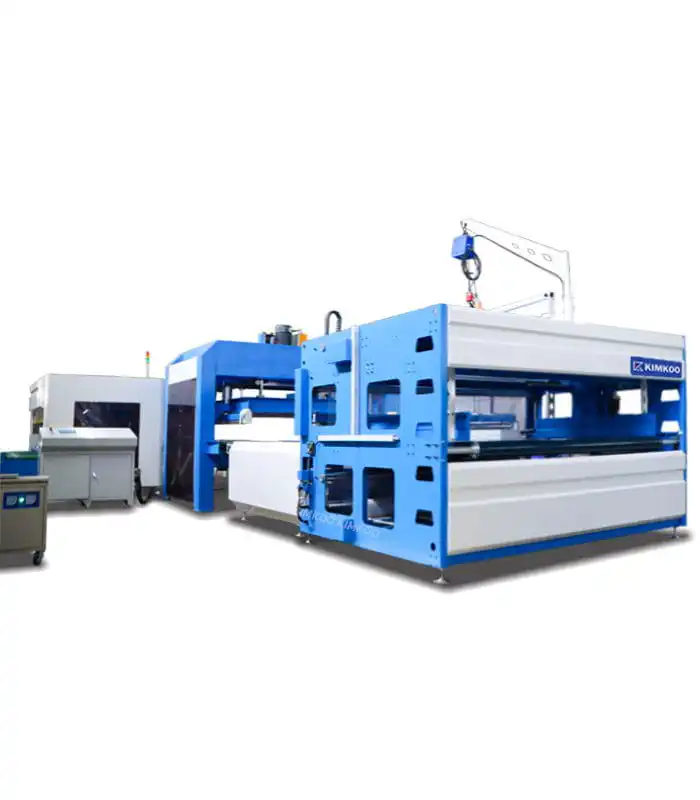

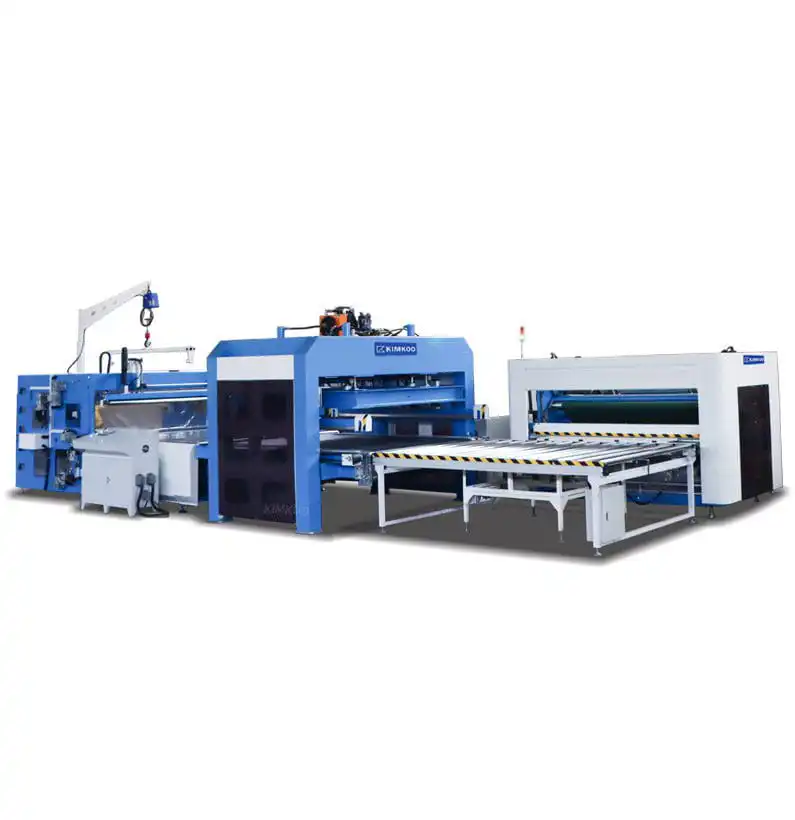

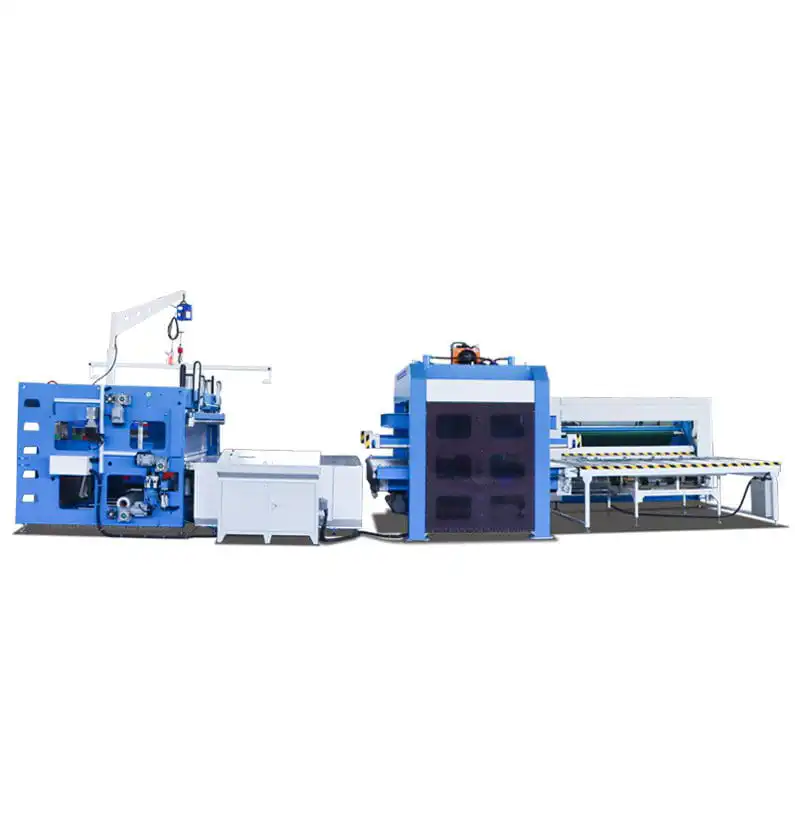

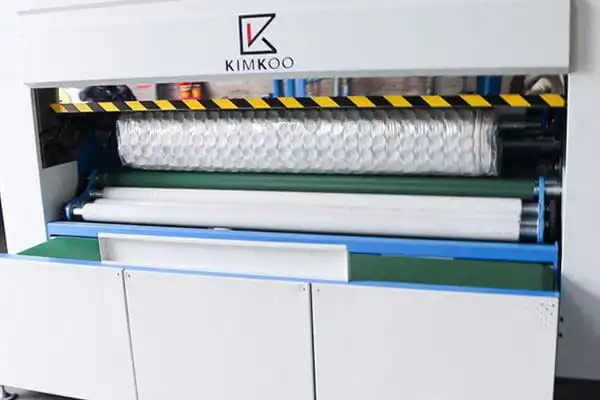

This machine handles mattress bagging, compression, and roll-packing in one streamlined process—ideal for foam, latex, and pocket spring mattresses. It forms tightly sealed cylindrical packages, reduces volume by up to 85%, and helps manufacturers save on storage space and shipping costs.
This machine automates bagging, compression, and roll-packing of pocket coil, latex, and foam mattresses—forming compact cylindrical packages and reducing volume by up to 85% for easier storage and lower shipping costs.
It is one of our mattress compression packing machines, designed for efficient mattress packaging and logistics optimization.

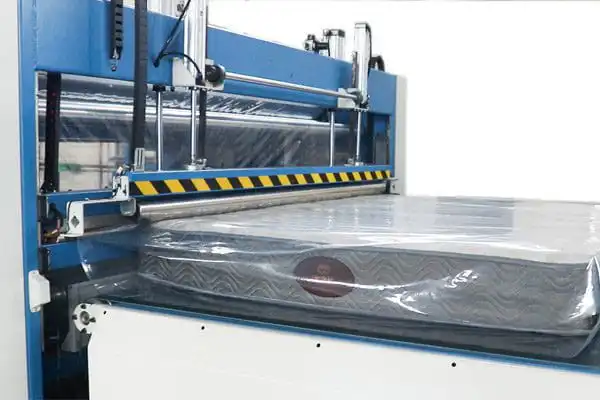

The mattress is fully wrapped automatically, with no need for manual hand bagging. Any type of mattress is fed by the conveyor and then automatically wrapped, compressed, sealed, and rolled. Engineered for mattress manufacturers aiming to streamline logistics, reduce per-unit shipping costs, and maximize warehouse space, this machine transforms bulky and reboundable mattresses into neat, space-saving packages—ideal for e-commerce, retail, and boxed shipping.

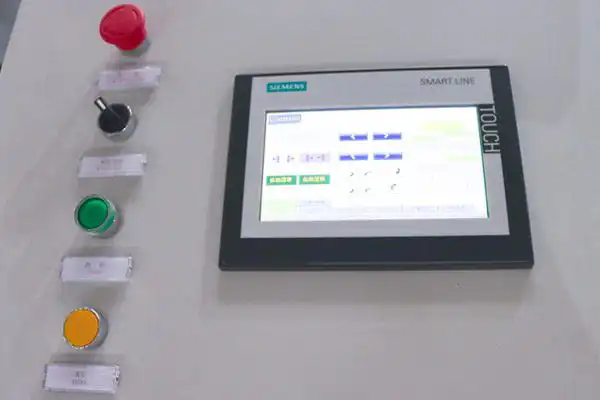

Built with a robust structure for long-term operation, the machine features a user-friendly touchscreen PLC interface and high-performance SIEMENS electrical components for reliable and precise control. This fully automated process not only increases packaging efficiency but also significantly reduces labor requirements.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-CR3 |
Packaging Efficiency |
50 – 60 seconds per mattress |
|
Exit Diameter Range of the Mattress |
230 - 450 mm (Adjustable) |
Max. Mattress Size (L × W × H) |
2200 mm × 2200 mm × 500 mm |
|

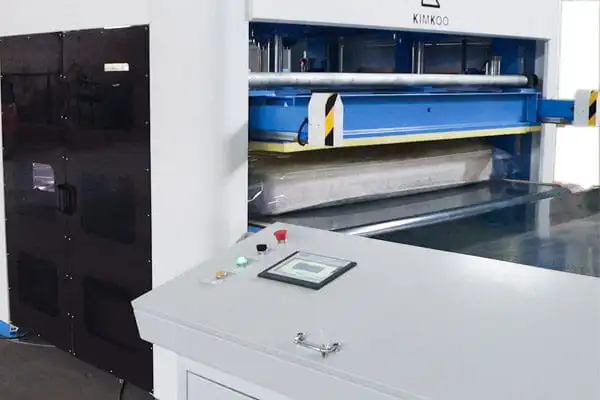

Hydraulic Pressure |
100 Tons |
Package Materials |
PE / PVC roll film, stretch roll film |
|
Control System |
SIEMENS touchscreen panel & PLC control |
Oilpump Power |
7.5 KW |
|
Total Power |
45 KW |
Air Requirment |
0.3m³/min 0.6 - 0.8 MPa |
|
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
CE Certificate |
Yes |
|
Total Weight |
11200 KG |

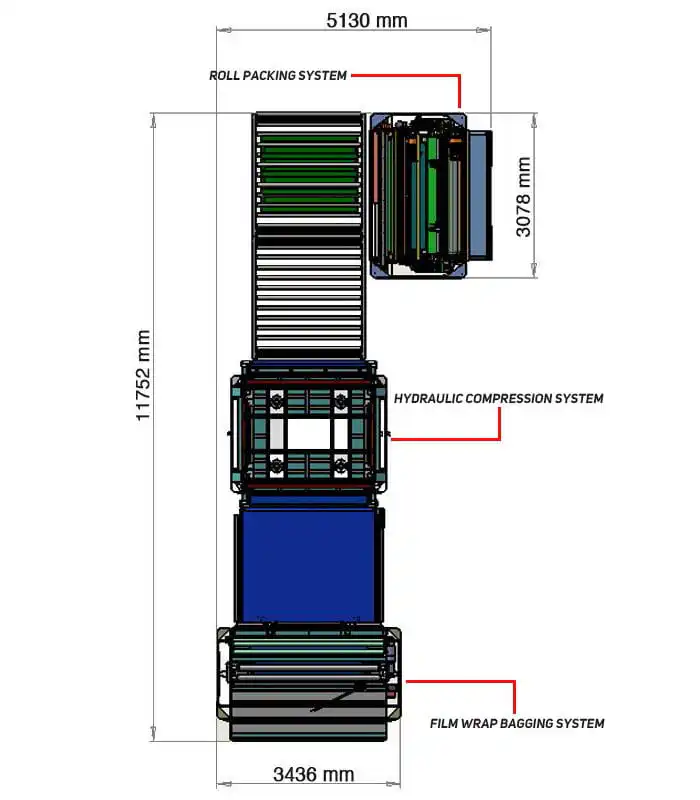

Machine Dimension (L,W,H) |
12000 mm × 5200 mm × 2600 mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 45 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
Sea freight is the primary shipping method we use because it is the most cost-effective and reliable option for transporting large or bulk machinery. No matter which country you are in, sea freight can usually reach a nearby port—even if the local sea transport infrastructure is limited or less efficient.
Once the shipment arrives at your destination port, the shipping line will notify you to pick it up. You can simply ask your local forwarder or customs broker to handle the port clearance and truck the machinery back to your factory.
For customers within China, we typically ship machinery by land freight, including heavy trucks, semi-trailers, or railway transport.
For overseas customers, land freight is only possible if your country is physically connected to mainland China. While trucks and semi-trailers can generally transport machinery only up to the border, the key factor for cross-border delivery is whether a railway route exists to your country, or at least to a nearby transfer point where the cargo can then continue by truck into your region.
Air freight is generally not suitable for our machinery because the equipment is too large to fit into standard cargo planes. Even if the size allows, the shipping cost would be extremely high and impractical.
Instead, we use air freight mainly for shipping documents (such as B/L copies, invoices, packing lists) or for sending small spare parts, accessories, or consumables that customers may need urgently.
We offer several flexible payment methods to suit your business needs:
KIMKOO offer multiple types of pocket spring assembly machines — some can connect with 2 coilers, and others up to 3. Freely combine with pocket spring coiling machines of different speeds. Easily set up a 1-to-1, 1-to-2, or 1-to-3 production line to match your capacity. Customize your setup today!
