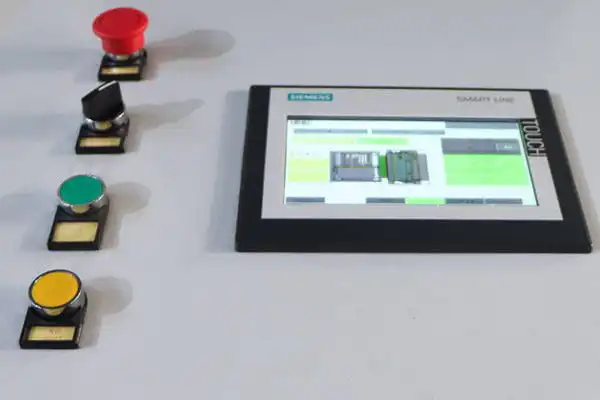

This machine compresses and roll-packs sofas, foam blocks, and stacked foam layers with up to 120 tons of pressure, reducing volume by up to 90%. With a maximum compression height of 1000 mm and four hydraulic cylinders, it ensures uniform pressure and reliable performance. The touchscreen PLC control system, equipped with SIEMENS components, provides precise and efficient operation. Fast packaging cycles help save time, optimize storage space, and cut shipping costs with secure sealing.

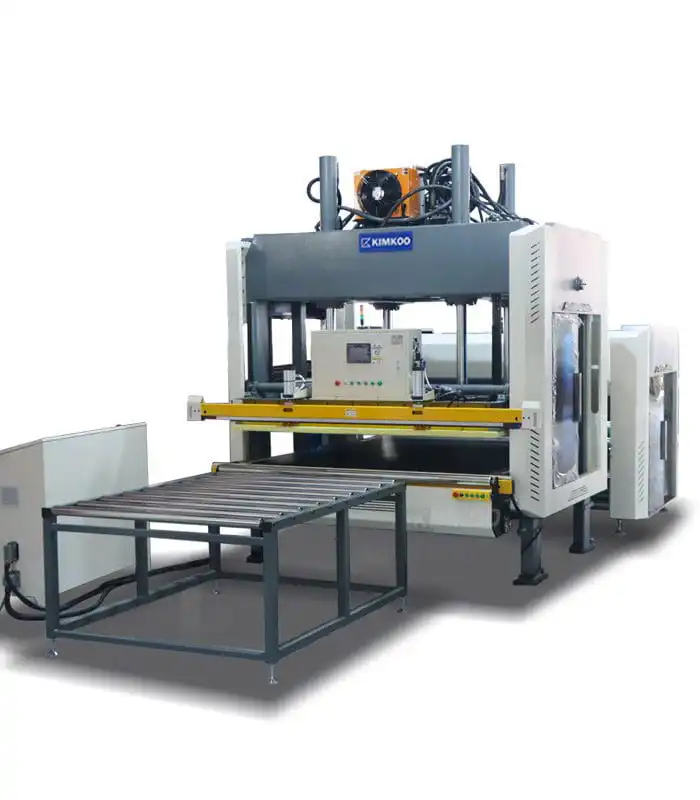

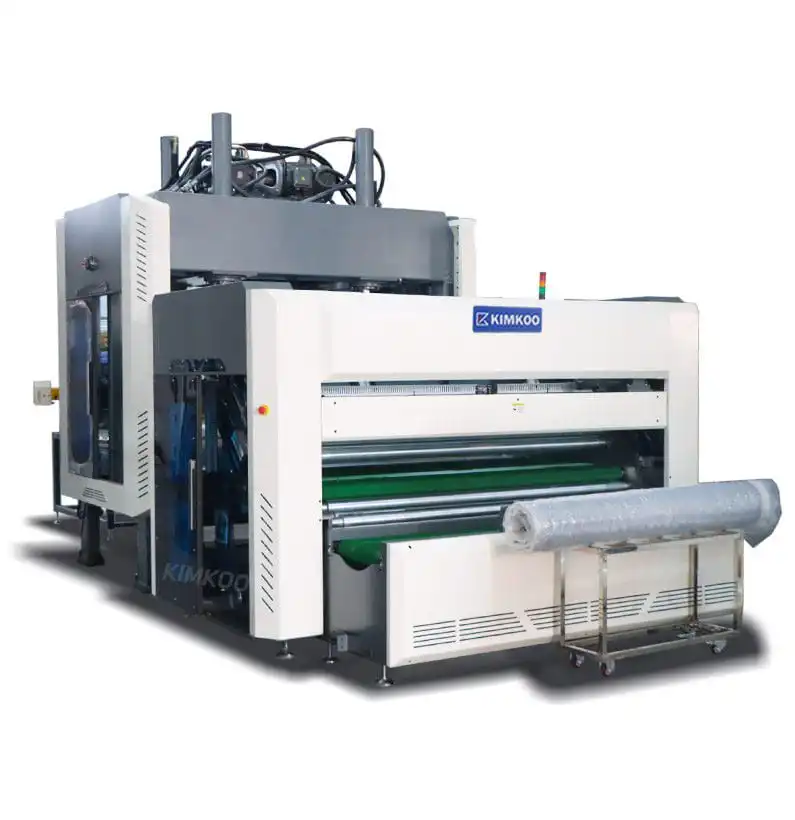

The Sofa & Foam Compression Roll Packing Machine is engineered to compress and roll-pack foam blocks, mattresses, and sofas (foam or spring-based) into compact, cylindrical packages—achieving up to 90% volume reduction. Ideal for manufacturers seeking to optimize warehouse space, simplify logistics, and significantly reduce shipping costs per unit, this machine transforms bulky, reboundable products into neatly packaged units ready for boxed shipping.
After compression and rolling, products can be easily inserted into cartons—making transportation more efficient and presenting a professional, refined packaging appearance.

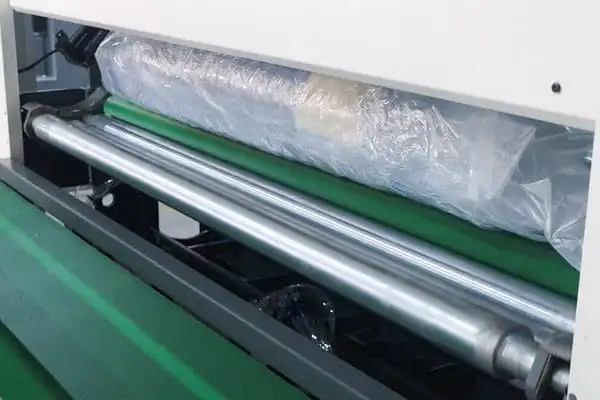

Automatically adjusts the roll package diameter based on product thickness and length, forming a precise cylindrical package. The PLC system allows setting target diameter values within a predefined range, ensuring accurate and consistent roll-packing results.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-C3R |
Packaging Efficiency |
45 – 55 seconds per unit |
|
Hydraulic Pressure |
120 Tons |
Compression Plate Dimensions |
2100 mm × 2300 mm |
|
Supported Foam Block & Sofa Dimensions |
Length: 1800–2300 mm |
Conveyor |
Anti-Static Conveyor Belt |
|
Max Compression Height (Press Plate Stroke) |
1000 mm |
Control System |
Touchscreen PLC control system with SIEMENS components |
|
Number of Air Cylinder |
10 pcs |
Number of Hydraulic Cylinders |
4 hydraulic cylinders |
|
Hydraulic Power |
7.5 KW |

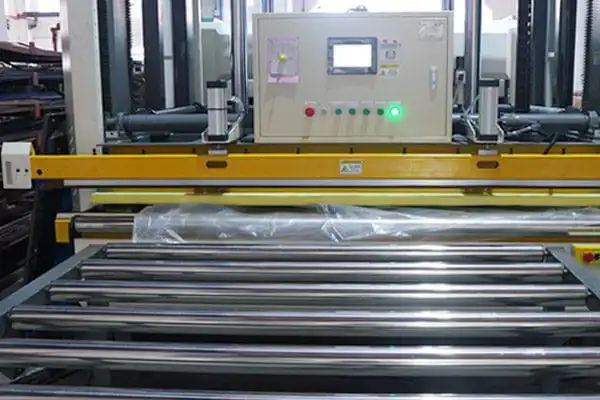

Heat Sealing Power |
3 KW |
|
Roll-Packed Diameter Range |
230 – 450mm |
Total Power |
38KW |
|
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
Air Requirment |
0.3m³/min 0.8MPa |
|
Total Weight |
7500 KG |
Machine Dimension (L,W,H) |
6200 mm × 2900 mm ×3000 mm |
