The single-axis mattress roll packing machine is an auxiliary unit designed to work with a mattress compression machine. It rolls pre-compressed mattresses into compact cylindrical packages for easier handling, storage, and shipping. Ideal for foam, latex, and pocket spring mattresses.

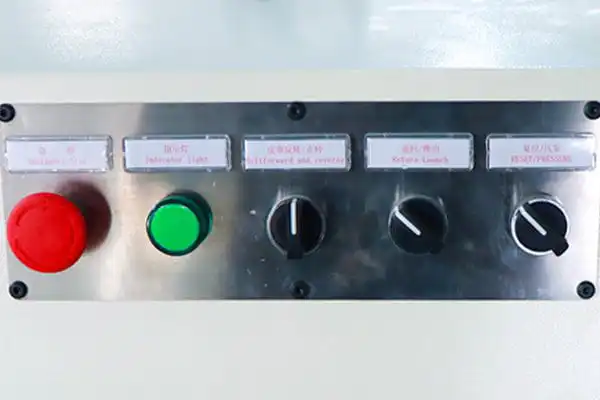

Equipped with a user-friendly PLC and intuitive control panel for easy parameter setting and fast mattress roll-packing.
...

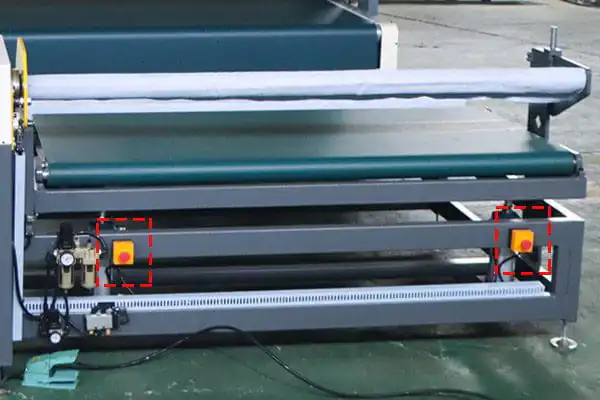

Equipped with multiple emergency stop buttons for quick shutdown, preventing accidents and ensuring operator safety.

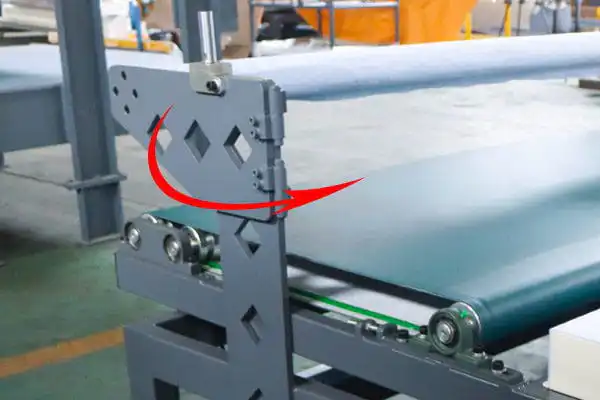

A simple, stable side lock allows fast release after roll-packing, enabling the mattress to be quickly and smoothly pushed out.

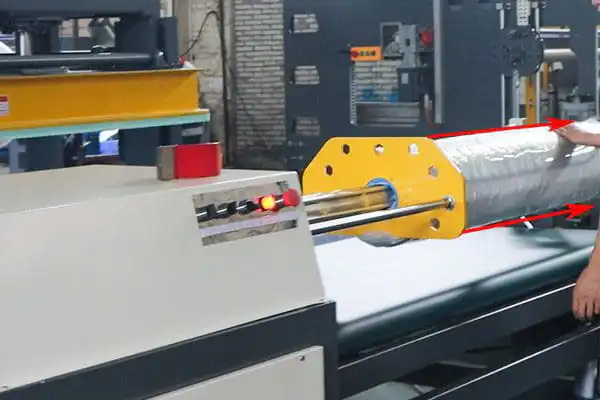

A pneumatic system safely and powerfully pushes the mattress off the rolling shaft after roll-packing is complete.
...

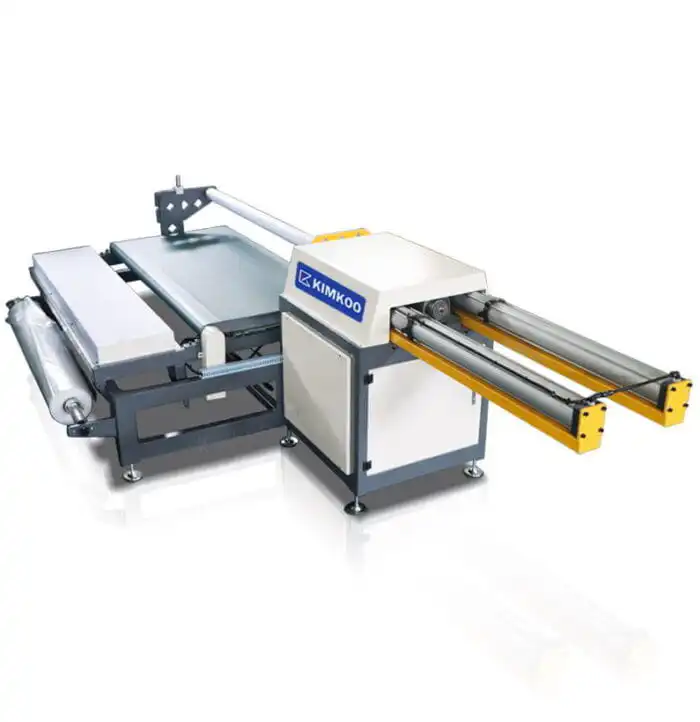

The single-axis mattress roll packing machine is designed for efficiently roll-packing pocket spring, latex, sponge, foam mattresses, and other resilient products such as foam blocks and sofas. This machine uses an electric-driven single-axis rotation to tightly roll the compressed mattress into a compact cylindrical form.

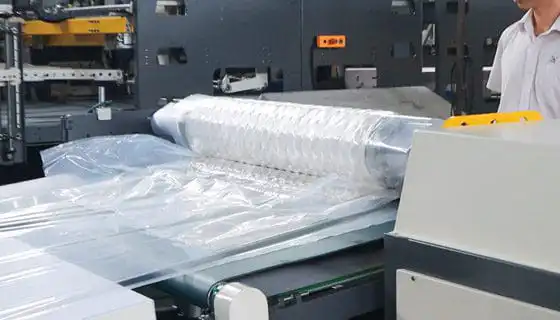

To ensure proper operation, all mattresses must be pre-compressed using a compatible compression machine. After compression, the mattress is placed into a PE bag or bubble film bag sized appropriately for the mattress dimensions. The roll-packing process delivers a firm, neat, and secure finish, preventing the roll from expanding or loosening post-packaging. The result is an attractive, space-saving package that enhances transportation and storage efficiency while minimizing costs.
Once the mattress is rolled, it is secured with sellotape and automatically discharged using pneumatic push-out technology. The export diameter of the rolled mattress typically ranges from 28 to 35 centimeters, depending on the original thickness and size of the product. This solution combines economic value with exceptional packaging quality for streamlined mattress delivery.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-R1 |
Supported Product Dimensions (L,W) |
2200mm × 2100 mm |
|
Packaging Efficiency |
50–60 sec (Compression & Roll-Packing) |
Conveyor |
Anti-Static Conveyor Belt |
| Package Materials |
PE / PVC bags, Bubble Film Bag |
Working Table Size (L,W) |
2200 mm × 2100 mm |
|
Roll Diameter |
28–35 cm (varies with mattress size and thickness) |
Spindle Power |
1.5 KW |
|
Transfer Power |
0.75KW |
Total Power |
2.25 KW |
|
Air Requirment |
0.3m³/min 0.8 MPa |
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
|
Total Weight |
1200 KG |
Machine Dimension (L,W,H) |
4400 mm× 2000 mm × 1200 mm |
