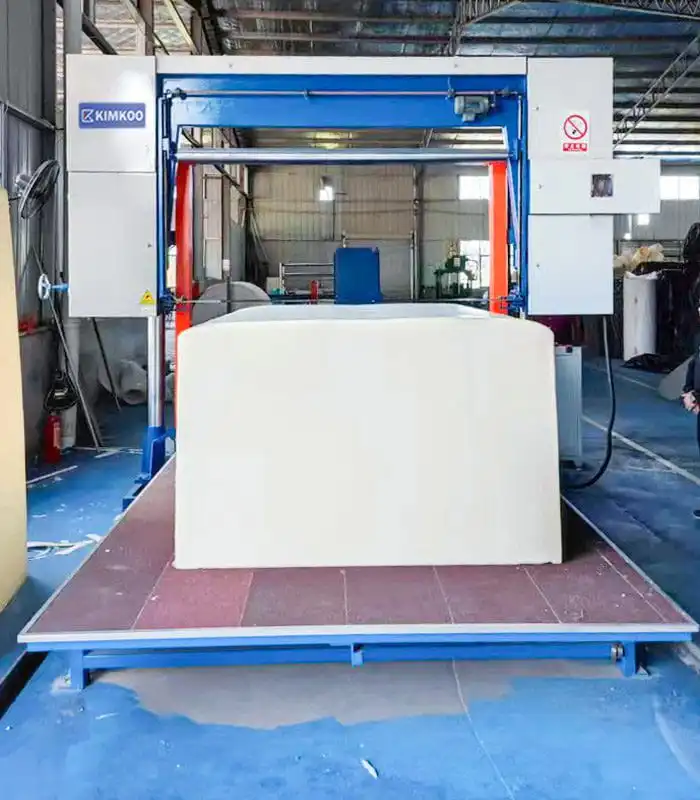

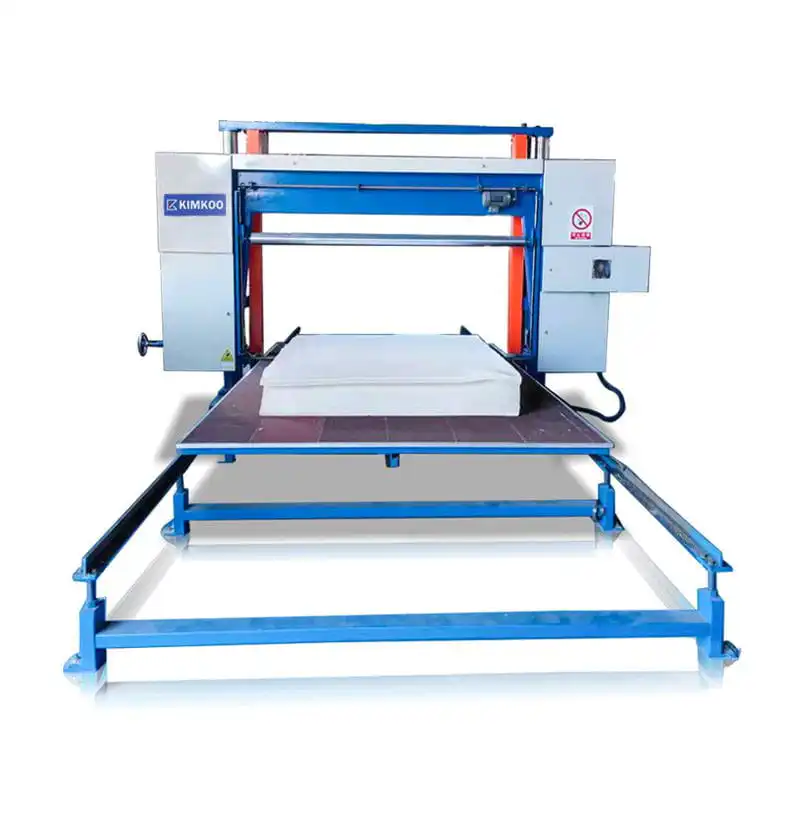

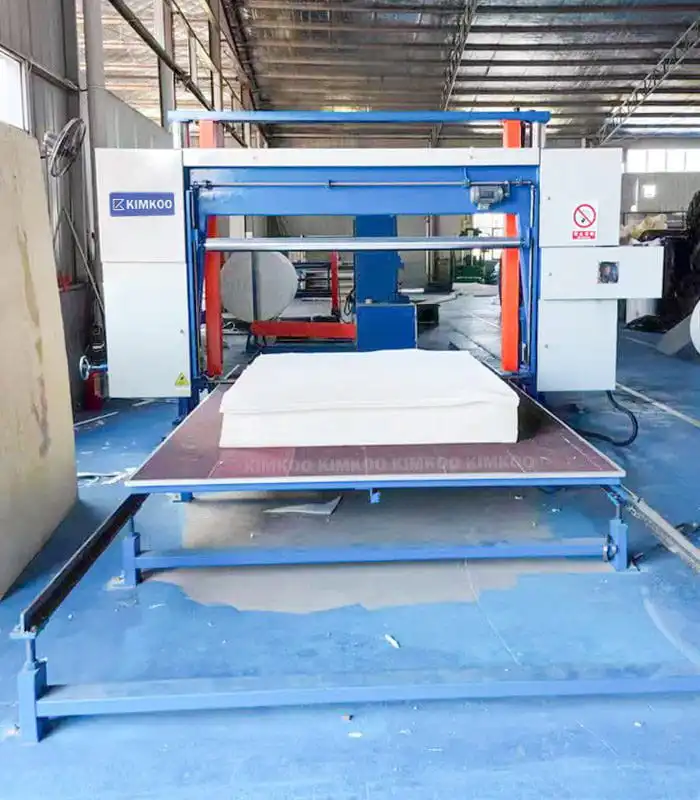

Horizontal Foam Cutting Machine

Add to compare

SKU: JK-FC05 Category: Foam Cutting Machines Tags: Horizontal Foam Cutter, Horizontal Foam Cutting Machine, Horizontal Foam Slab Cutter, Horizontal Foam Slicer, Horizontal PU Foam Cutter, Horizontal PU Foam Cutting Machine Brand: KIMKOO

Description

The horizontal foam cutting machine is a high-performance solution designed for precision and efficiency in cutting various foam materials. It is specifically engineered to slice block foam into uniform layers. Built for high-production environments like mattress and furniture manufacturing, this machine guarantees consistent cutting quality, speed, and accuracy, ensuring optimal performance even in demanding production settings.

Features

Automatic Digital Control: The worktable is equipped with fully automated digital control, allowing easy adjustment of cutting thickness and foam density via the control box. The machine operates seamlessly, offering precision without manual intervention.
Pressure Roller and Vacuum Option: The addition of a pressure roller prevents foam displacement during cutting, ensuring smooth, consistent slices. Optional vacuum equipment can be integrated for added convenience.
Adjustable Cutting Angle: The cutting unit, controlled by a servo motor, can be adjusted between 0° and 5° to accommodate various material types and cutting requirements.
Advanced Control System: Equipped with a user-friendly PLC system and touch screen, it offers precise cutting with high efficiency. The advanced inverter timing control ensures optimal performance and flexibility.
Durability and Reliability: Constructed for long-term use, this machine delivers consistent performance in continuous foam production lines, backed by a one-year warranty on core components.
Efficient Operation: Continuous cutting capabilities streamline production, while the press roller and precise thickness control device enhance accuracy and reduce waste.

Support and Service: Our experienced engineers provide reliable overseas service, ensuring timely support and maintenance for smooth operations.

Certified by CE, this machine is built to meet international standards, offering peace of mind and protecting your investment.

Applicable Materials

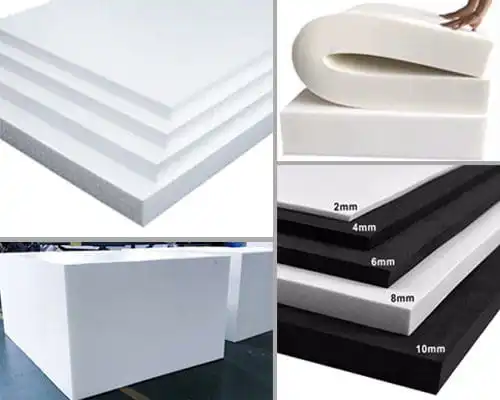

Suitable for cutting a wide range of foam materials, including PU foam, viscoelastic foam, latex, ether-based and ester-based polyurethanes, flame-protected and combustion-modified foams, high resilience PU foam, reticulated PU foams, rebonded polyurethane, and melamine formaldehyde resin.

Technical Specification
1605 TYPE		21510TYPE
Model	JK-FC05A	Model	JK-FC05B
Max. Cutting of Foam Size (W,L)	1650mm × 2000mm	Max. Cutting of Foam Size (W,L)	2150mm × 3000mm
Max. Cutting of Foam Height	1200mm	Max. Cutting of Foam Height	1200mm
Effective Cutting Thickness	2mm & above 2mm	Effective Cutting Thickness	2mm & above 2mm
Cutting Speed	0～30m/min(Adjustable)	Cutting Speed	0～30m/min(Adjustable)
Blade Length（L,W,T）	9160mm × 30mm × 0.45mm	Blade Length（L,W,T）	10160mm × 30mm × 0.45mm
Cutting Type	Automatic & with press-roller	Cutting Type	Automatic & with press-roller
Touchscreen System	Optional installation	Touchscreen System	Optional installation
Vacuum Suction Device	Optional installation	Vacuum Suction Device	Optional installation
Total Power	8.5kw	Total Power	8.5kw
Total Weight	2100kg	Total Weight	2300kg
Machine Dimension (L,W,H)	5800mm × 3600mm × 2500mm	Machine Dimension (L,W,H)	7800mm × 4500mm × 2500mm
