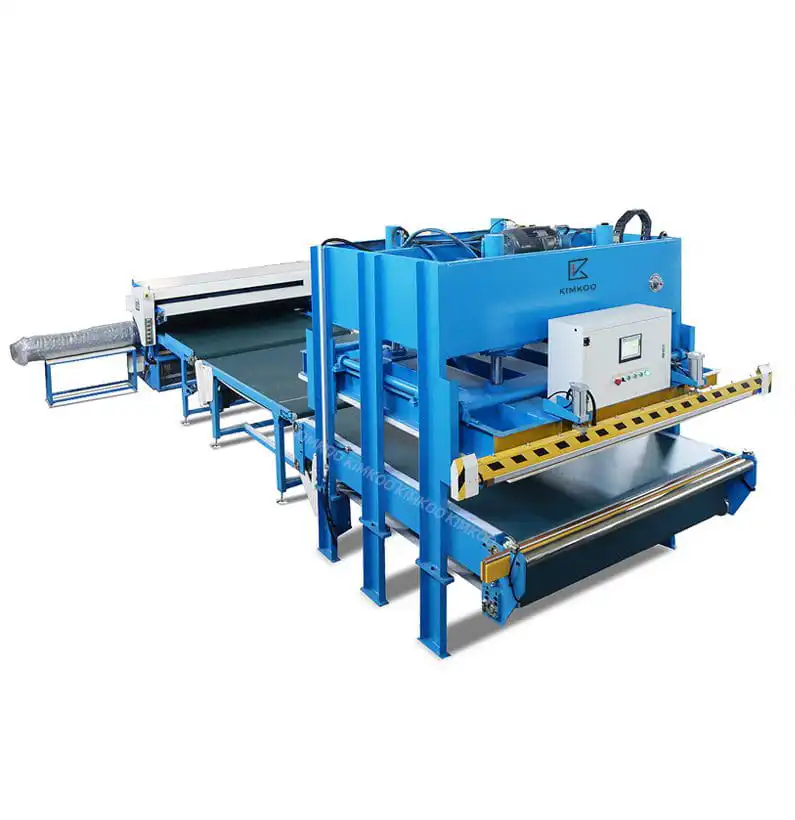

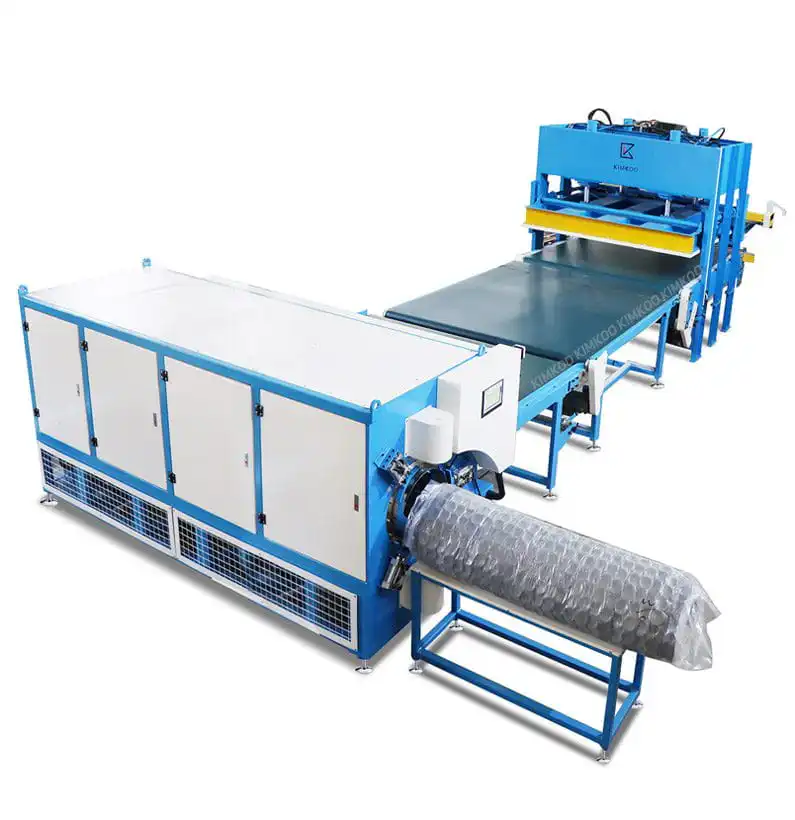

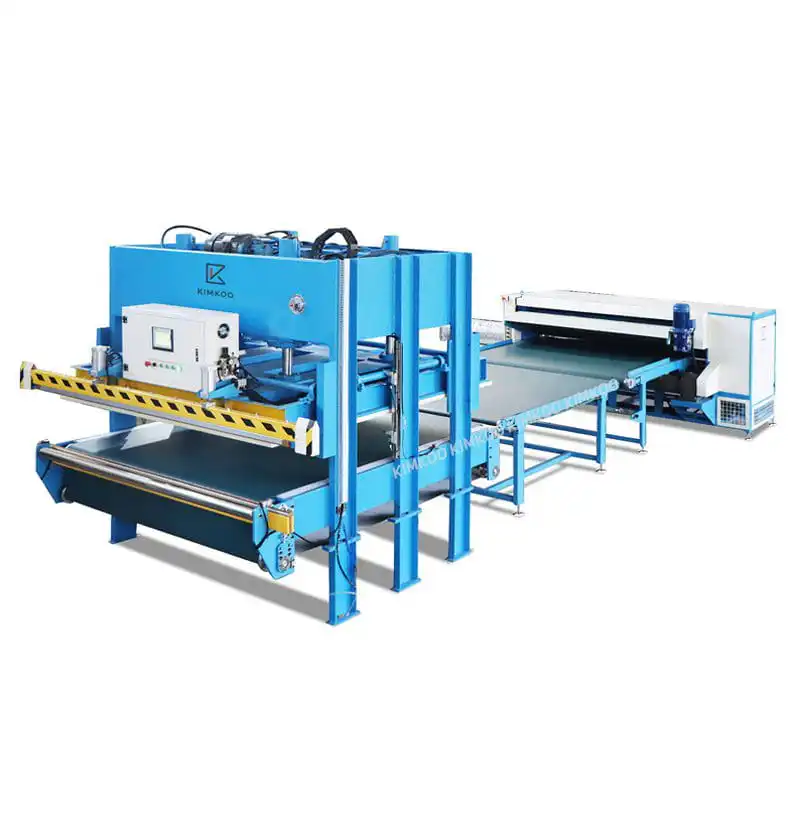

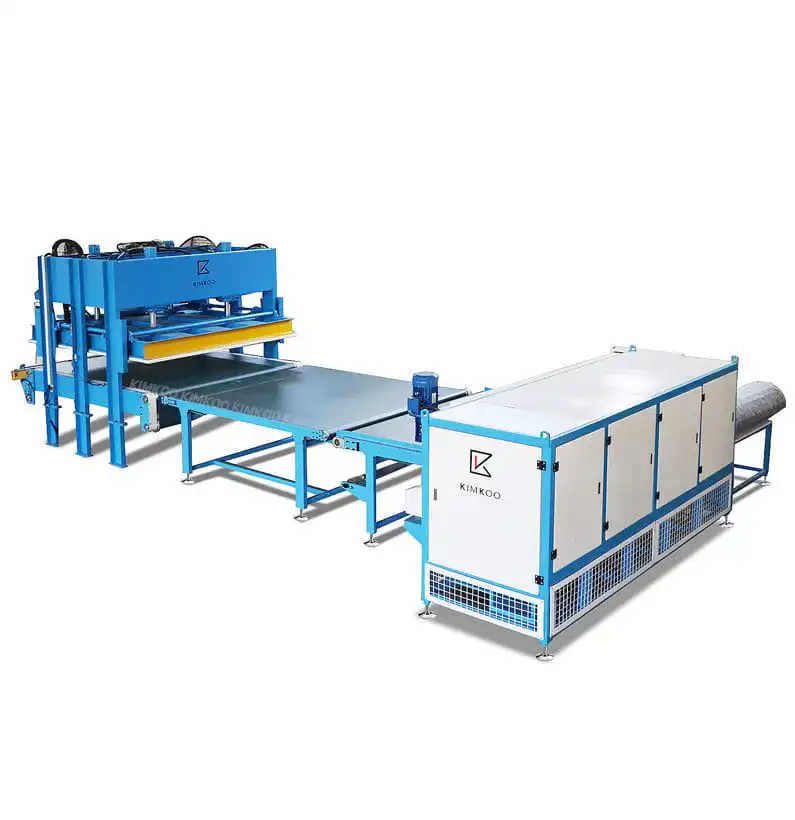

This mattress compression & roll packing machine with fixed roll diameter compresses and roll-packs mattresses into compact cylinders, reducing volume by up to 90%. It ensures consistent results using preset diameters of 29cm, 32cm, 34cm, 37cm, or 40cm. Ideal for foam, latex, and pocket coil mattresses. Perfect for efficient storage, shipping, and high-volume production.
The mattress compression & roll packing machine with fixed roll diameter is designed to automatically compress and roll-pack foam, latex, and pocket coil mattresses into compact cylindrical shapes—reducing volume by up to 90% for easier storage, simplified handling, and significantly lower shipping costs.
Tailored for manufacturers looking to improve logistics and meet the demands of e-commerce and retail distribution, this machine transforms large, bulky mattresses into tightly rolled, sealed packages that are ready for boxed delivery. The final result is a clean, space-saving roll that’s easy to insert into cartons while maintaining a professional presentation.
This model features a fixed roll diameter system, meaning all mattresses are roll-packed to a consistent diameter. This eliminates the need for multiple bag sizes—you only need to prepare one size of PE or PVC packaging bag. Fixed diameter options include 29cm, 32cm, 34cm, 37cm, and 40cm, giving you flexibility to match your mattress types and densities. If you're unsure which roll diameter is best for your production, our team can provide expert guidance based on your mattress specifications.
This machine ensures uniform results with every cycle—making mattress packaging faster, cleaner, and more cost-effective.
|
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-CR1A |
Packaging Efficiency |
30 - 40 seconds per mattress |
|
Fixed Package Diameter Options |
29 cm / 32 cm / 34 cm / 37 cm / 40 cm /45 cm |
Max. Mattress Size (L × W × H) |
2200 mm × 2100 mm × 500 mm |
|
Hydraulic Pressure |
50 Tons |
Compression Height Range (Press Plate Stroke) |
500 mm |
|
Package Materials |
PE or PVC film bag, and a stretch roll film |
Control System |
Touchscreen Panel & PLC Control System |
|
Oilpump Power |
7.5 KW |
Heat Sealing Power |
3 KW |
|
Total Power |
22.65 KW |
Air Requirment |
0.3m³/min 0.6 - 0.8 MPa |
|
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
CE Certificate |
Yes |
|
Total Weight |
6800 KG |

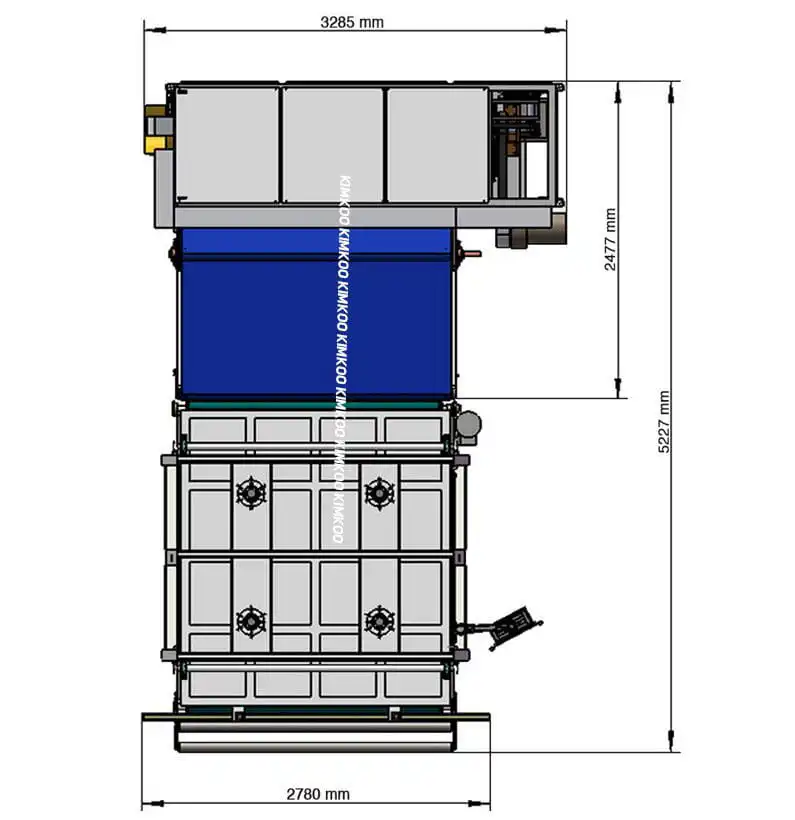

Machine Dimension (L,W,H) |
5500mm × 3300 mm × 2500 mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 45 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
Sea freight is the primary shipping method we use because it is the most cost-effective and reliable option for transporting large or bulk machinery. No matter which country you are in, sea freight can usually reach a nearby port—even if the local sea transport infrastructure is limited or less efficient.
Once the shipment arrives at your destination port, the shipping line will notify you to pick it up. You can simply ask your local forwarder or customs broker to handle the port clearance and truck the machinery back to your factory.
For customers within China, we typically ship machinery by land freight, including heavy trucks, semi-trailers, or railway transport.
For overseas customers, land freight is only possible if your country is physically connected to mainland China. While trucks and semi-trailers can generally transport machinery only up to the border, the key factor for cross-border delivery is whether a railway route exists to your country, or at least to a nearby transfer point where the cargo can then continue by truck into your region.
Air freight is generally not suitable for our machinery because the equipment is too large to fit into standard cargo planes. Even if the size allows, the shipping cost would be extremely high and impractical.
Instead, we use air freight mainly for shipping documents (such as B/L copies, invoices, packing lists) or for sending small spare parts, accessories, or consumables that customers may need urgently.
