The high-speed automatic CNC pocket spring coiling machine produces up to 180 springs per minute with exceptional precision and efficiency. Equipped with an intuitive touchscreen and servo control, it offers stable, user-friendly operation. The optional dual-wire version enables zoned spring production, meeting diverse mattress and sofa manufacturing needs. This advanced pocket spring making machine reduces waste and boosts productivity for large-scale production.
Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.
Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.
Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.
| Specification | Chair | Armchair | Sofas |
| Height | 37" | 42" | 42" |
| Width | 26.5" | 32.5" | 142" |
| Depth | 19.5" | 22.5" | 24.5" |
| Assembly Required | No | No | Yes |
| Packaging Type | Box | Box | Box |
| Package Weight | 55 lbs. | 64 lbs. | 180 lbs. |
| Packaging Dimensions | 27" x 26" x 39" | 45" x 35" x 24" | 46" x 142" x 25" |
The JK-PS-180DW offers an advanced dual-wire capability designed for precision zoning and extended productivity. By feeding two steel wires simultaneously—either of the same or different diameters—the machine enables manufacturers to create pocket spring units with targeted support zones. This flexibility makes it ideal for producing ergonomic mattresses where firmness varies across different areas of the body, such as shoulders, back, and hips.
With its dual wire decoiling system, operators can alternate between thicker and thinner springs (e.g., 1+1, 2+2, 3+5 patterns), enabling intelligent customization of spring layouts without mechanical modification. All zoning logic and spring sequences can be programmed directly on the intuitive touchscreen control system.
Even when uniform wire diameter is used, the dual decoiler configuration allows quick switching between preloaded spools—minimizing interruptions and maximizing continuous operation. Whether for zoned design or uninterrupted bulk production, this optional upgrade significantly boosts flexibility, efficiency, and long-term output stability.
This machine is our fastest and most reliable pocket spring manufacturing solution, independently developed based on market demand. It represents a new generation of high-speed CNC pocket spring machines featuring multiple patented technologies, specifically designed for producing pocket springs used in mattresses and sofas.

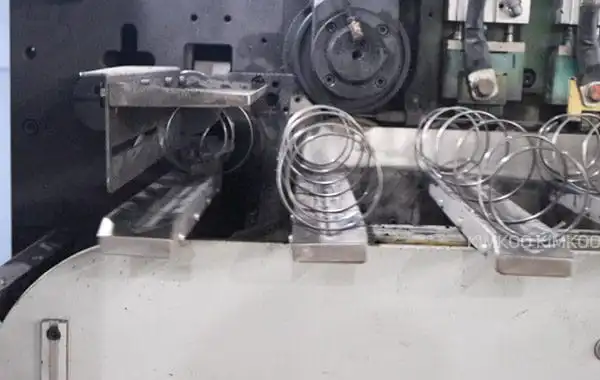

At its core is a fully digital, servo-controlled coiling head that ensures high-speed operation, simple setup, and long-term production stability. With a maximum output of 180 springs per minute, it delivers exceptional performance for large-scale manufacturing.

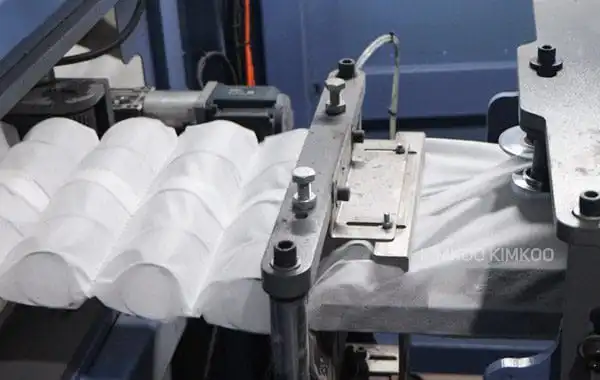

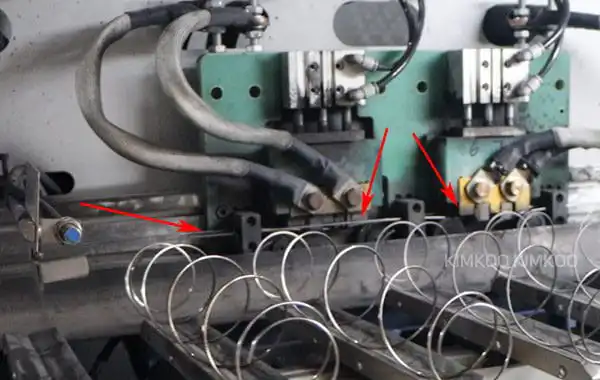

The machine automates the entire production process, including wire feeding, heat treatment, spring coiling, non-woven fabric feeding, fabric pressing, ultrasonic welding, and spring separation. All operations are precisely coordinated for smooth, continuous production with minimal manual intervention.

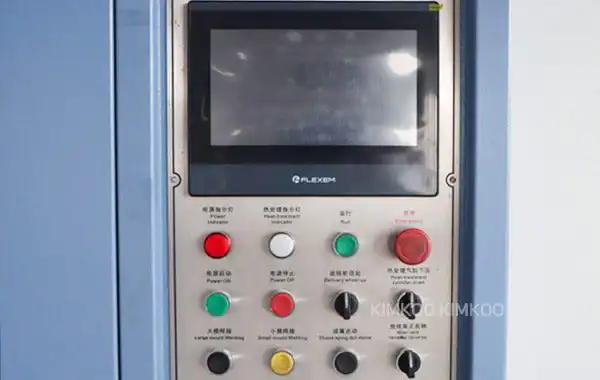

An intuitive touchscreen interface, combined with a reliable PLC and servo system, enables real-time parameter adjustments and ensures synchronized, stable operation under high-speed conditions.
For enhanced flexibility, an Optional Dual-Wire Version is available—allowing manufacturers to meet more diverse production requirements with increased efficiency.
Engineered for speed, consistency, and user-friendly operation, this machine helps manufacturers achieve higher productivity, reduce material waste, and produce high-quality pocket springs with confidence.

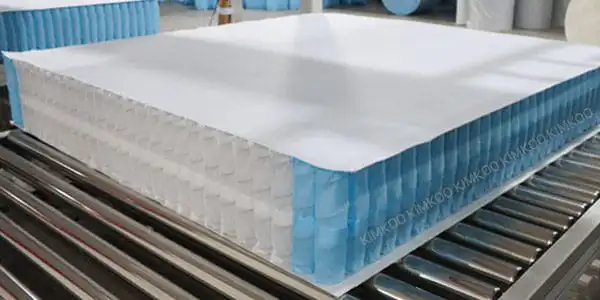

Shown here is a finished Pocket Coil Spring Unit produced by a complete pocket spring production line.
|
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-PS-180 (Single-Wire) / JK-PS-180DW (Dual-Wire) |
Production Capacity |
180 Springs/Min |
|
Drive Type |
Fully Servo-Driven System |
CNC Control |
Yes (Spring Coiling Fully Digitized) |
|
Control System |
Omron Touchscreen + PLC + Physical Buttons |
Air Requirment |
0.3m³/min 0.6MPa |
|
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
CE Certificate |
Yes |
|
Total Power |
Single-Wire – 40 kW / Dual-Wire – 45 kW |
Total Weight |
Single-Wire – 4000 KG / Dual-Wire – 4500 KG |
|
Machine Dimension (L,W,H) |
Single-Wire: 8340 mm × 1560 mm × 2150 mm |
||
MATERIAL SPECIFICATIONS |
|||
|
Wire Dia. |
Φ1.8 - Φ2.2 mm (Customizable) |
Non-Woven Supply |
60 - 90g/m² |
|
Non-Woven Width |
320 mm - 680 mm |
Inner Dia. of Non-Woven |
≥ 60 mm |
|
Outer Dia. of Non-Woven |
≤ 1000 mm |
||
SPRING SPECIFICATIONS |
|||
|
Pocket Spring Height |
80mm - 250mm (Customizable) |
Spring Central Dia. |
Φ55 mm - Φ75 mm (Customizable) |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 30 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
We offer several flexible payment methods to suit your business needs:
KIMKOO offer multiple types of pocket spring assembly machines — some can connect with 2 coilers, and others up to 3. Freely combine with pocket spring coiling machines of different speeds. Easily set up a 1-to-1, 1-to-2, or 1-to-3 production line to match your capacity. Customize your setup today!
