Designed for foam, latex, and sponge mattresses ≤30KG/M³, this roll packing machine creates compact, secure rolls in 35 seconds—perfect for saving space and shipping costs.

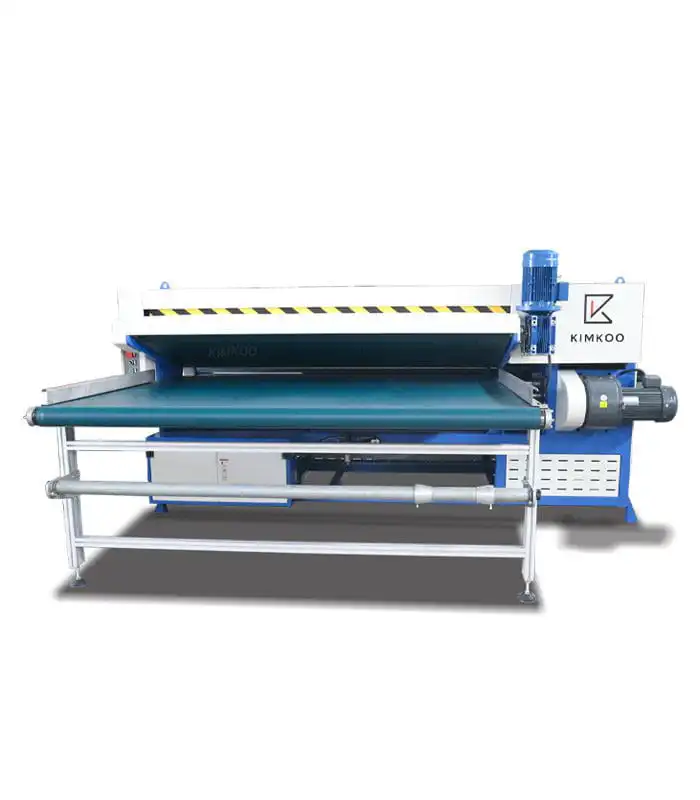

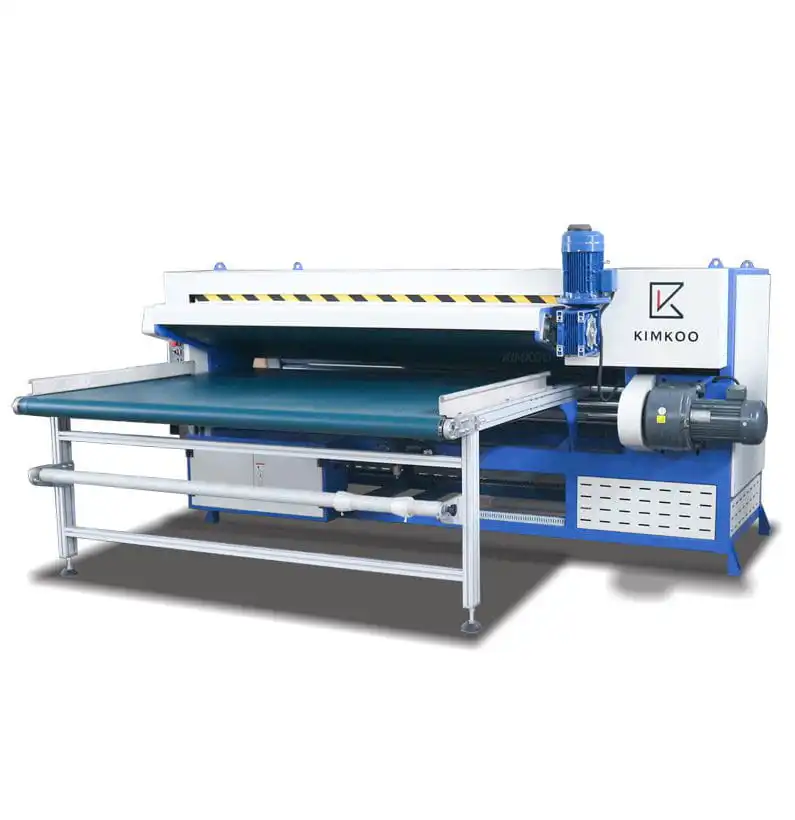

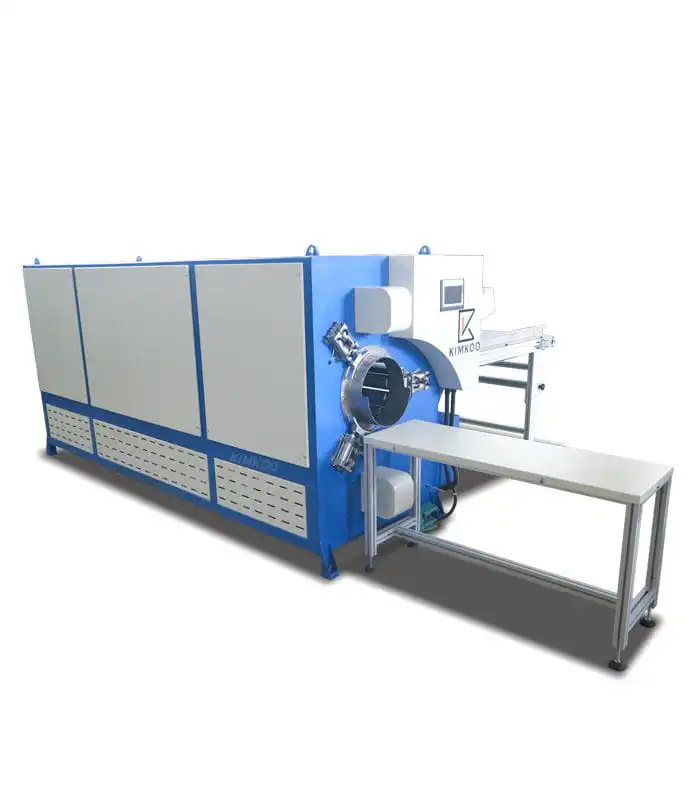

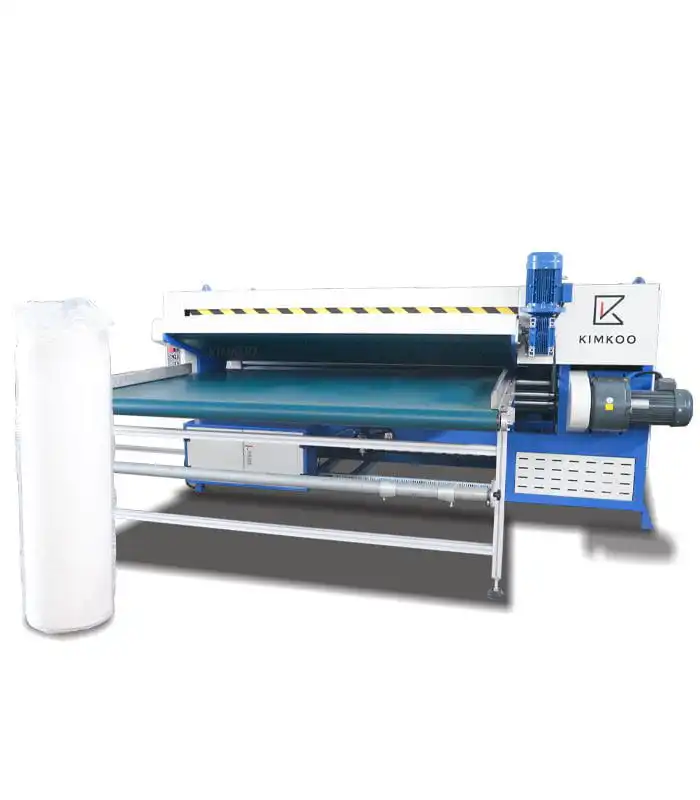

This foam mattress roll packing machine (fixed diameter) is designed specifically for roll-packing foam, latex, and sponge mattresses with a density of ≤30KG/M³. It delivers a tight, compact, and secure roll every time—ideal for reducing mattress volume for easier transportation, better storage, and significantly lower shipping costs. The entire roll-packing process takes only 35 seconds and results in a smooth, space-efficient package that prevents the mattress from expanding or loosening after packing.

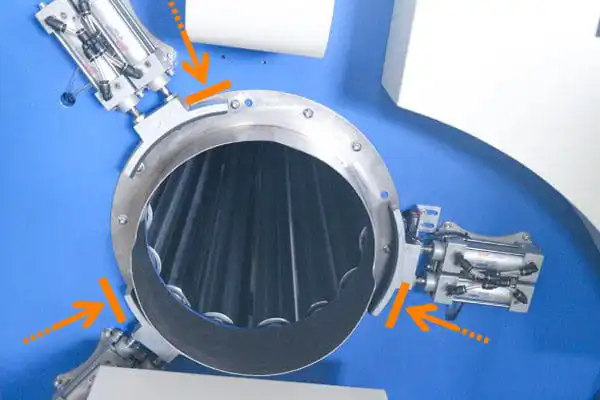

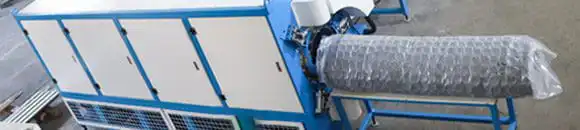

To begin, a PVC or PE bag with an approximate diameter of 320mm—prepared in advance—is placed at the roll outlet and secured in position. The bag is then fixed in place using a foot pedal. Once the mattress is loaded into the machine, it is automatically rolled and pushed directly into the bag.
This system is especially suitable for foam mattresses and is widely used in shipping, retail, and e-commerce.
While the machine offers a certain degree of compression, it is not recommended to roll-pack pocket spring mattresses directly using this machine. Doing so may shorten the machine’s lifespan and puts greater stress on the PE or PVC bags, increasing the risk of tearing due to rebound force. Instead, pocket spring mattresses (without border) should first be compressed and sealed using a dedicated mattress compression machine. This pre-processing step flattens the mattress and prevents rebound, making it suitable for safe and efficient roll packing using this machine.
To accommodate various mattress densities and thicknesses, the machine can be equipped with different outlet sizes, typically including options like 29cm, 32cm, 34cm, 37cm, and 40cm—allowing flexibility according to customer needs.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-R2 |
Packaging Efficiency |
35 seconds per mattress |
|
Supported Product Max Dimensions (L,W) |
2100mm × 2000 mm |
Maximum Mattress Height(Thickness) |
450 mm |
|
Optional Fixed Package Diameters |
29cm, 32cm, 34cm, 37cm, 40cm, 45cm |
Maximum Mattress Density |
≤30KG/M³ (foam, latex, and sponge mattresses) |
|
Package Materials |
PE / PVC Bags, Bubble Film Bag |
Conveyor |
Electronic-driven anti-static conveyor belt |
|

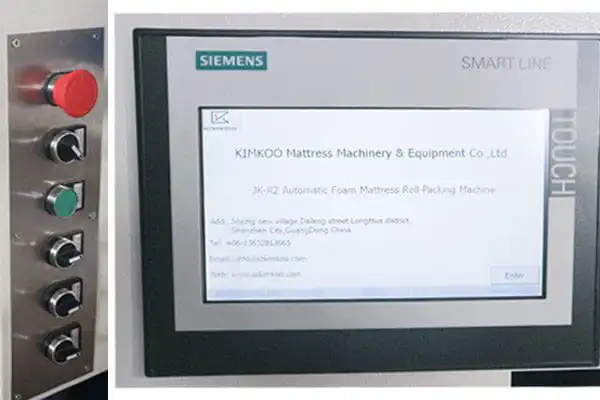

Control System |
SIEMENS touchscreen panel with PLC control |
Mattress Push-Out Motor Power |
3.7 KW |
|
Roll Drum Motor Power |
5.5 KW |
Anti-Static Conveyor Belt Motor Power |
2.2 KW |
|

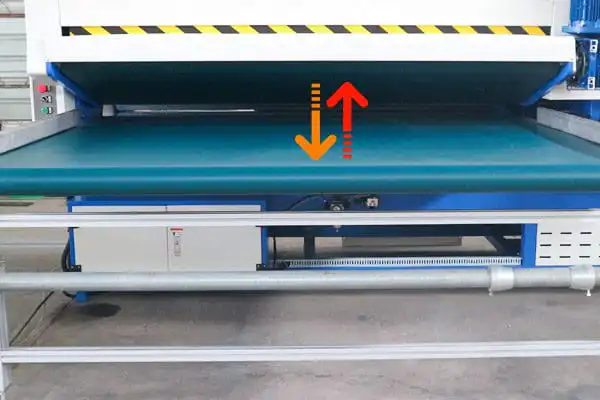

Adjustable Work Surface Motor Power |
0.75 KW |
Total Power |
12.15 KW |
|
Air Requirment |
0.3m³/min 0.6 - 0.8 MPa |
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
|
Total Weight |
3200 KG |
Machine Dimension (L,W,H) |
3300 mm (+ discharge table 4400 mm) × 2500 mm × 1500 mm |
