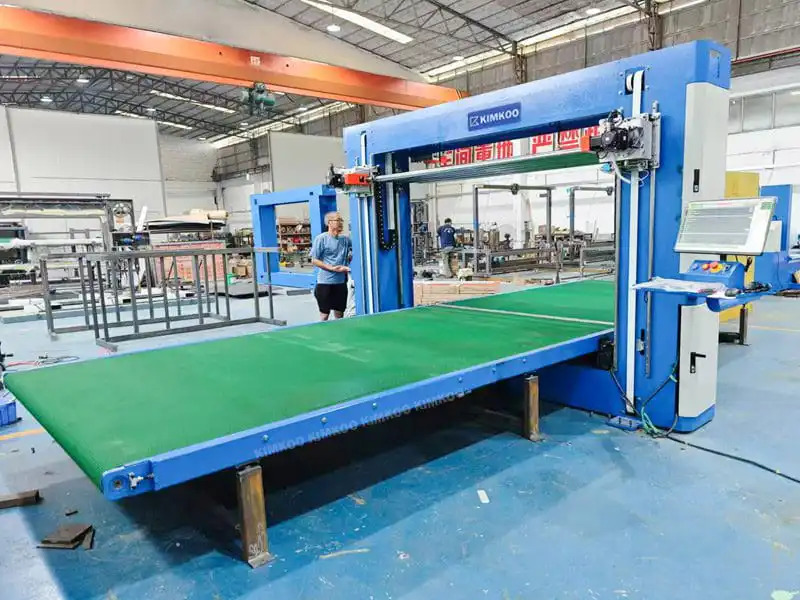

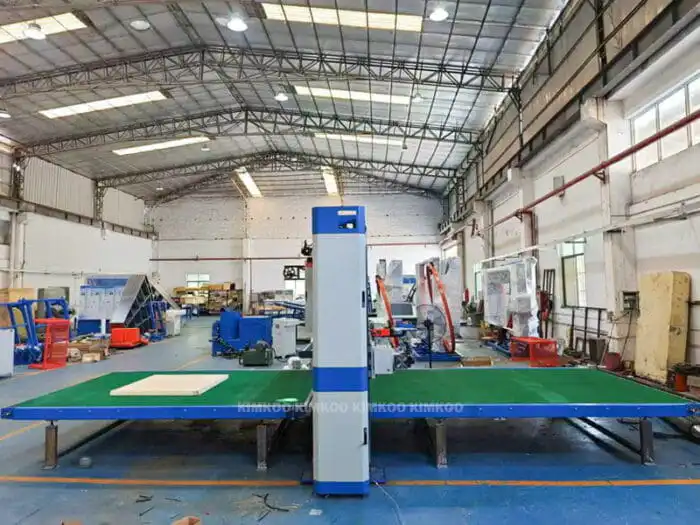

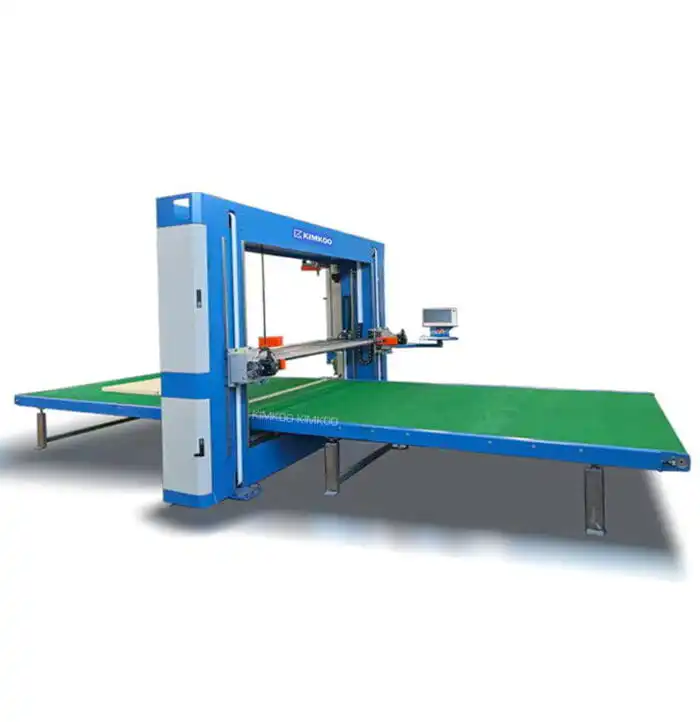

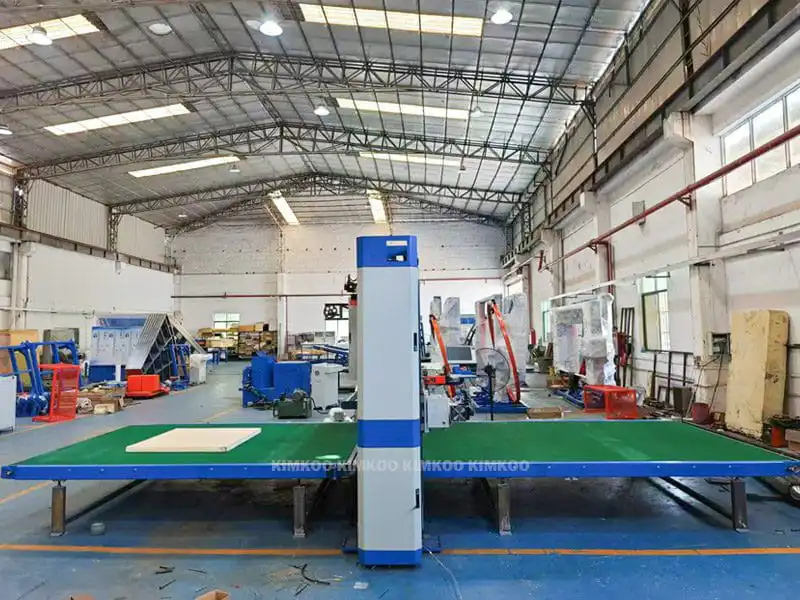

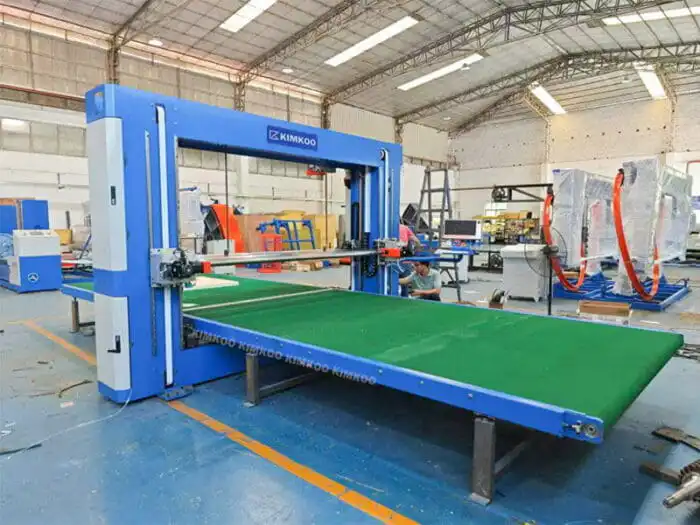

The CNC foam contour cutting machine is a high-precision, computerized system designed specifically for cutting complex 2D and 3D shapes from soft foam materials. Utilizing a high-speed vibrating blade or optional ring blade cutting system, it combines vertical and horizontal knife functionality to deliver exceptional contour accuracy. Enhanced with a press plate device, it ensures clean, smooth cuts across a wide range of foam densities and thicknesses.
The CNC foam contour cutting machine is a high-precision, computerized system designed specifically for cutting complex 2D and 3D shapes from soft foam materials. Utilizing a high-speed vibrating blade or optional ring blade cutting system, it combines vertical and horizontal knife functionality to deliver exceptional contour accuracy. Enhanced with a press plate device, it ensures clean, smooth cuts across a wide range of foam densities and thicknesses.

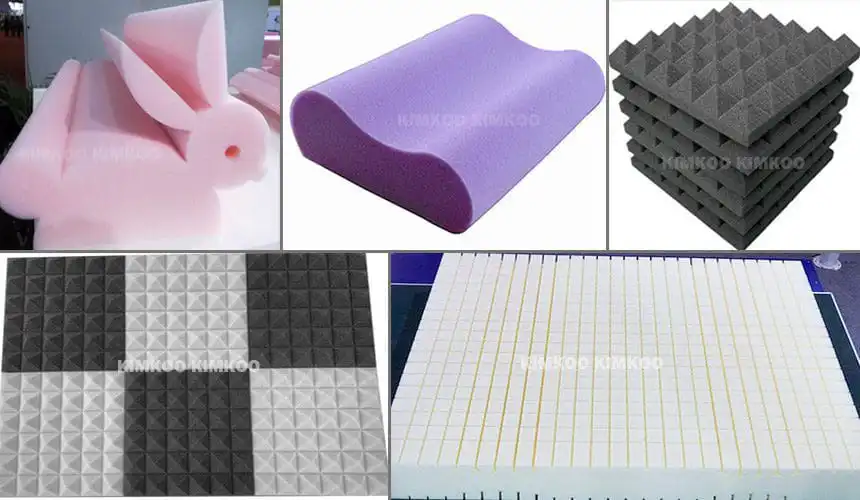

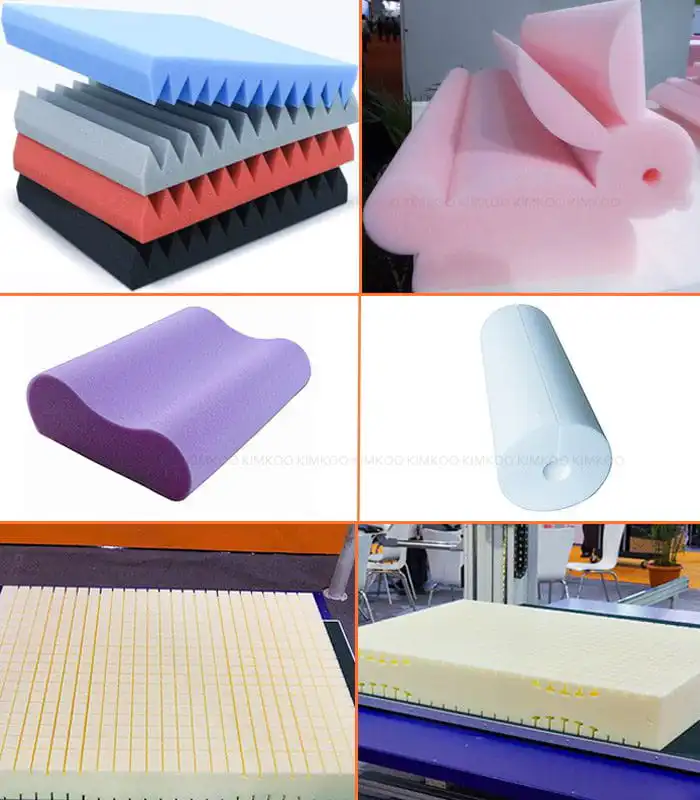

Ideal for use in the automotive, furniture, packaging, construction, and consumer goods industries, this machine is engineered to process materials such as PU foam, PE, PVC, latex, rebond foam, and more. It effortlessly shapes intricate geometric profiles, including pyramid forms (via rotary table), wave patterns, irregular cuts, and dimensional block forms.
PU foam, PE foam, PVC foam, latex, sticky foam, rebond foam, and other soft foam blocks.
Whether producing components for mattresses, sofas, car seats, or specialty packaging, the CNC foam contour cutting machine delivers reliability, flexibility, and precision in every cut.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-FC01 |
Max. Cutting of Foam Size (L,W) |
3000mm × 2000mm |
|
Max. Cutting of Foam Height |
1200mm |
Effective Cutting Foam Density |
≥50kg/CBM(+0.03-0.05mm) |
|
Cutting Speed |
0 - 30m/min |
Control System |
Industrial Computer |
|
Blade Speed |
500-1800m/min |
Software |
Y-CUT + CAD |
|
Voltage |
380v/220v 3-Phase(Customizable) |
Total Power |
12kw |
|
Total Weight |
3550kg |
Machine Dimension (L,W,H) |
7100mm × 4600mm × 3200mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 30 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
We offer several flexible payment methods to suit your business needs:
KIMKOO offer multiple types of pocket spring assembly machines — some can connect with 2 coilers, and others up to 3. Freely combine with pocket spring coiling machines of different speeds. Easily set up a 1-to-1, 1-to-2, or 1-to-3 production line to match your capacity. Customize your setup today!
