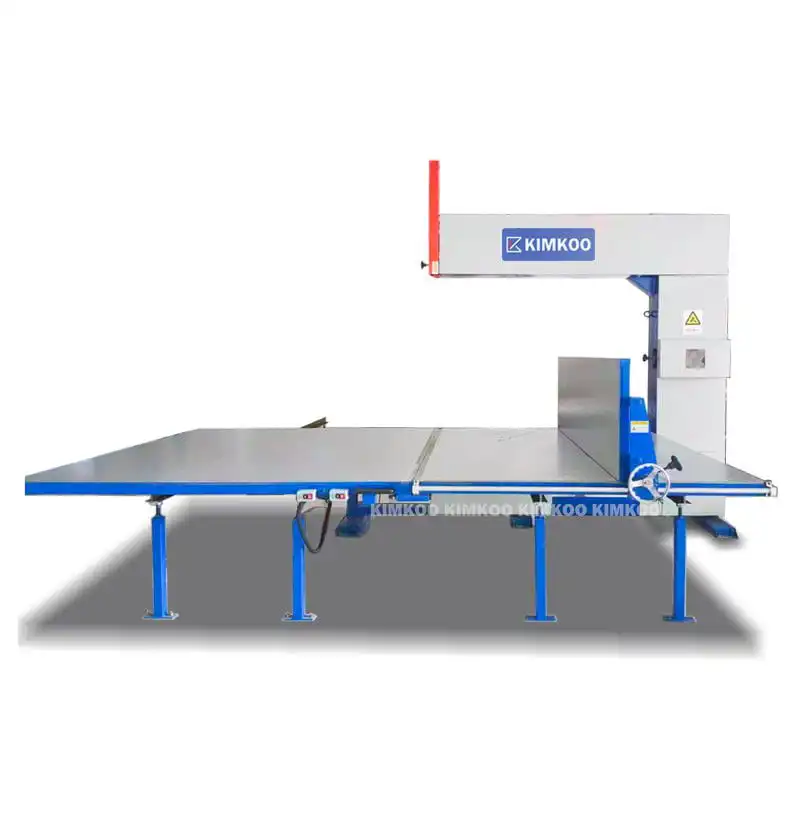

This vertical foam cutting machine is designed for precise cutting, trimming, and splitting of foam blocks using a high-performance vertical blade. Ideal for processing large foam blocks into custom sizes, it ensures clean, accurate cuts across a wide range of soft materials.
This vertical foam cutting machine is designed for precise cutting, trimming, and splitting of foam blocks using a high-performance vertical blade. Ideal for processing large foam blocks into custom sizes, it ensures clean, accurate cuts across a wide range of soft materials.

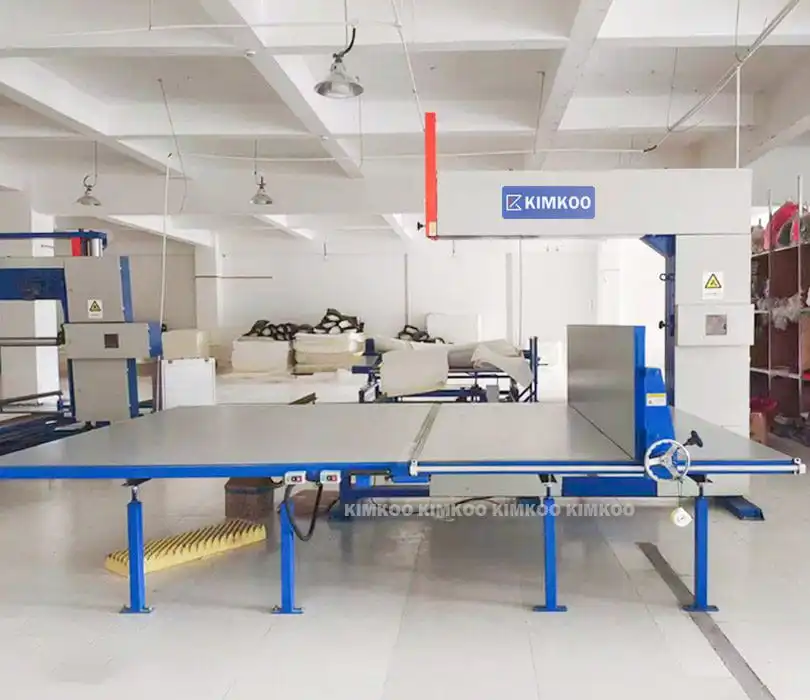

Equipped with a movable cutting head and a stationary, ball-bearing-supported table, the machine offers excellent stability and high cutting precision. The adjustable guide fence, controlled by a hand wheel and ratchet mechanism, enables fast, repeatable, and highly accurate positioning for consistent results.
This machine is an essential solution for foam processing facilities seeking accuracy, efficiency, and versatility in production.

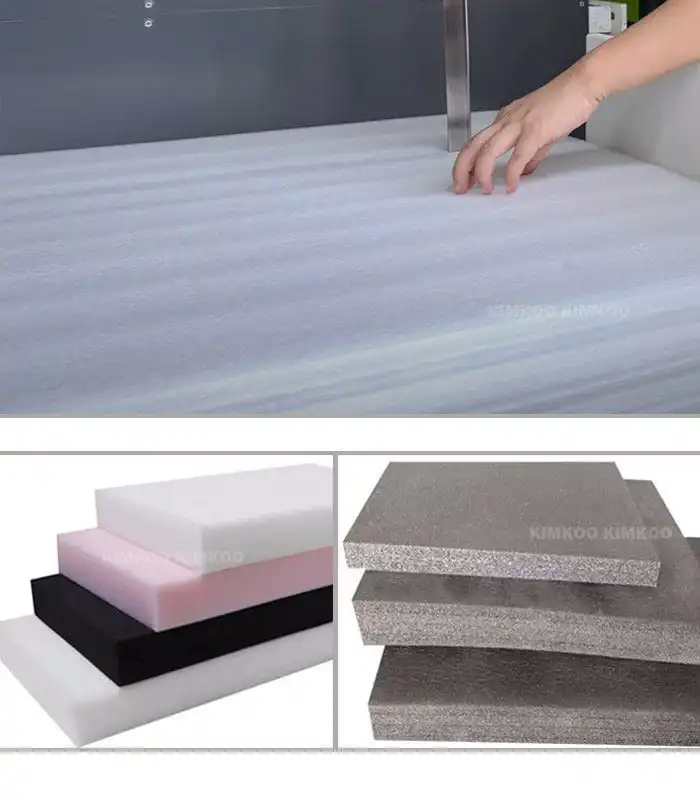

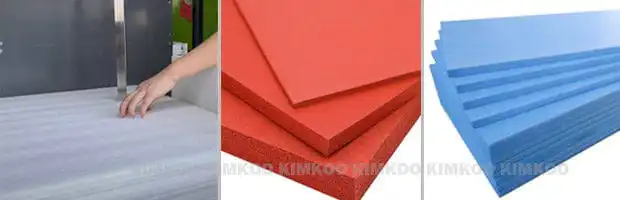

The machine handles various foam materials, including PU, PE, EVA, EPE, bonded foam, and PVC, as well as other soft and flexible materials such as leather, rubber, plastic, nylon, synthetic leather, non-woven fabrics, paper, and packaging materials. It supports cutting of single-layer and multi-layer formats, making it especially suitable for wide-format and rolled material applications.
Technical Specification |
|||
|---|---|---|---|
|
NORMAL SIZE |
PLUS SIZE |
||
|
Model |
JK-FC02A |
Model |
JK-FC02B |
|
Inner Table Size (W,L) |
1320mm × 2300mm |
Inner Table Size (W,L) |
1720mm × 2300mm |
|
Outer Table Size (W,L) |
1200mm × 2300mm |
Outer Table Size (W,L) |
2000mm × 2300mm |
|
Effective Cutting of Foam Height |
1200mm |
Effective Cutting of Foam Height |
1200mm |
|
Effective Cutting Thickness |
5mm & above 5mm |
Effective Cutting Thickness |
5mm & above 5mm |
|
Blade Length（L,W,T） |
7690mm × 30mm × 0.45mm |
Blade Length（L,W,T） |
8500mm × 30mm × 0.45mm |
|
Total Power |
1.7kw |
Total Power |
1.7kw |
|
Total Weight |
1100kg |
Total Weight |
1300kg |
|
Machine Dimension (L,W,H) |
4000mm × 3200mm × 2500mm |
Machine Dimension (L,W,H) |
4400mm × 4400mm × 2500mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 45 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
Sea freight is the primary shipping method we use because it is the most cost-effective and reliable option for transporting large or bulk machinery. No matter which country you are in, sea freight can usually reach a nearby port—even if the local sea transport infrastructure is limited or less efficient.
Once the shipment arrives at your destination port, the shipping line will notify you to pick it up. You can simply ask your local forwarder or customs broker to handle the port clearance and truck the machinery back to your factory.
For customers within China, we typically ship machinery by land freight, including heavy trucks, semi-trailers, or railway transport.
For overseas customers, land freight is only possible if your country is physically connected to mainland China. While trucks and semi-trailers can generally transport machinery only up to the border, the key factor for cross-border delivery is whether a railway route exists to your country, or at least to a nearby transfer point where the cargo can then continue by truck into your region.
Air freight is generally not suitable for our machinery because the equipment is too large to fit into standard cargo planes. Even if the size allows, the shipping cost would be extremely high and impractical.
Instead, we use air freight mainly for shipping documents (such as B/L copies, invoices, packing lists) or for sending small spare parts, accessories, or consumables that customers may need urgently.
