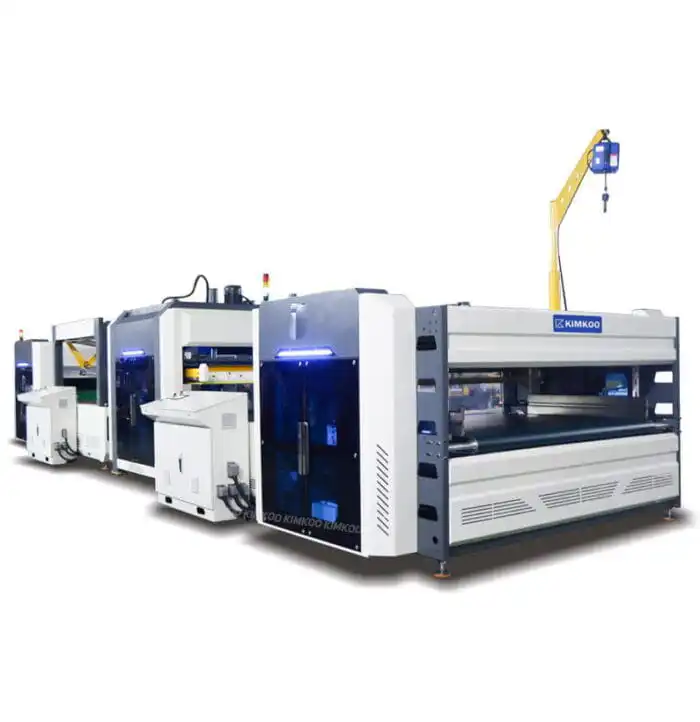

A fully automatic mattress packing machine—an integrated packaging line with auto bagging, compression, folding, and roll packing to boost efficiency and cut shipping costs.

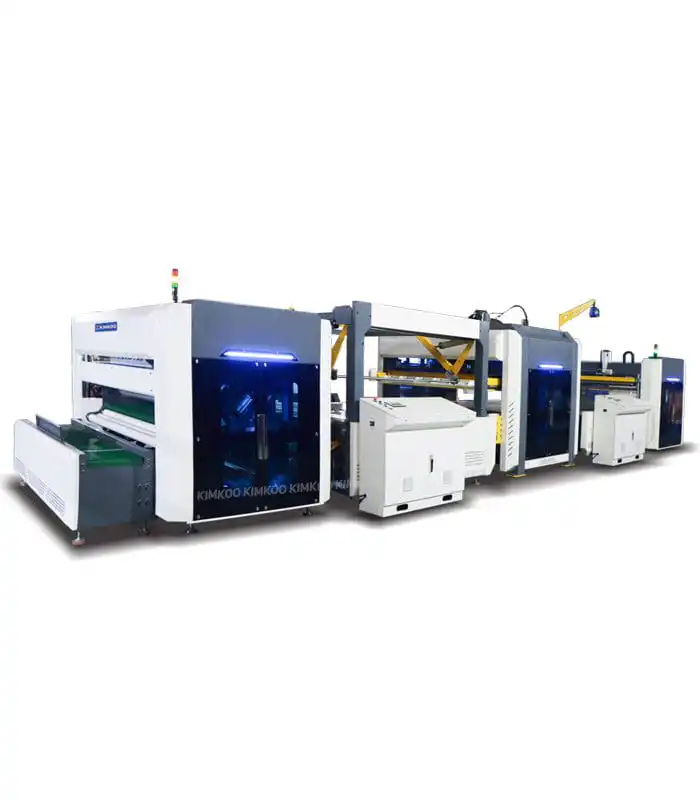

This automatic packaging line is designed for bagging, compressing, folding, and roll packing foam, latex, and pocket coil mattresses into compact cylindrical packages—reducing volume by up to 92% to optimize storage and shipping.
Ideal for mattress manufacturers looking to streamline their packaging process, this machine automates every step—from auto bagging to final roll packing—eliminating the need for manual labor and creating consistent, space-saving results. Whether the goal is to reduce shipping costs per unit, enhance warehouse efficiency, or prepare mattresses for direct-to-consumer or retail distribution, this system delivers.

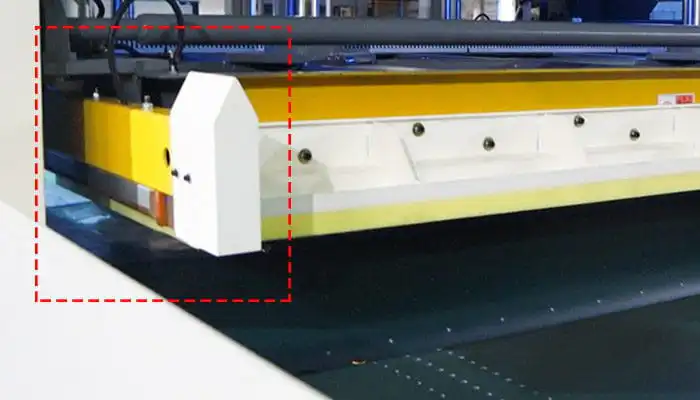

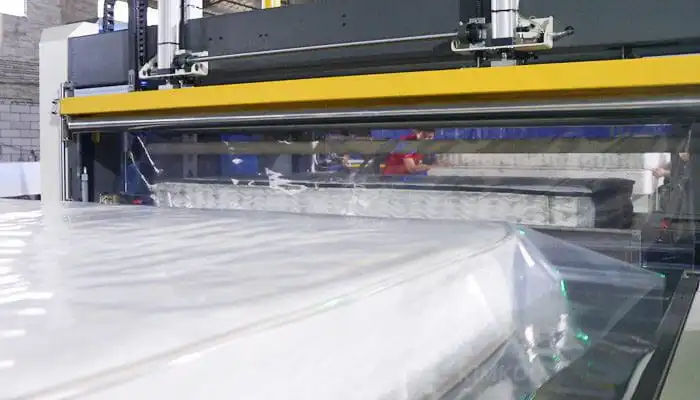

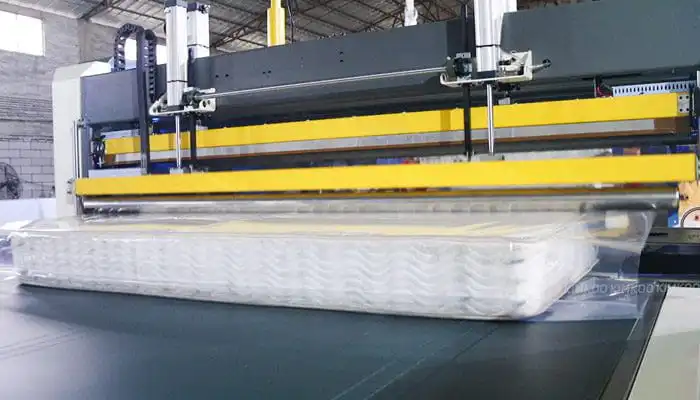

Mattresses are conveyed, wrapped with film, compressed, sealed, folded, and rolled—all automatically. With multiple packaging modes available, including autobagging only, compress and roll, or compress, fold, and roll, manufacturers can choose the best method for their product and market.

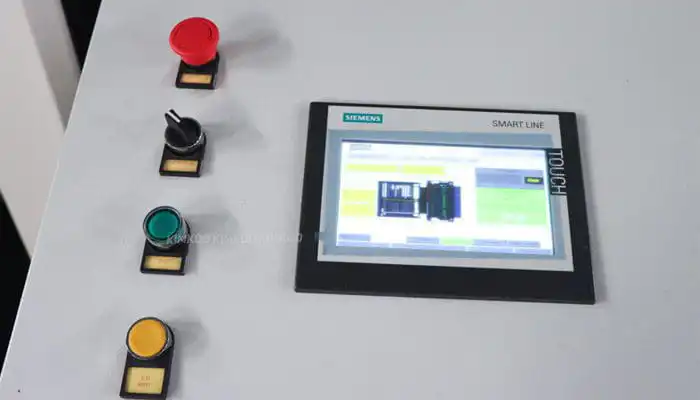

Built for long-term industrial use, the machine features a rugged structure, a user-friendly touchscreen PLC interface, and reliable SIEMENS electrical components for precise, efficient operation. It’s engineered to increase packaging output while significantly reducing labor demands.

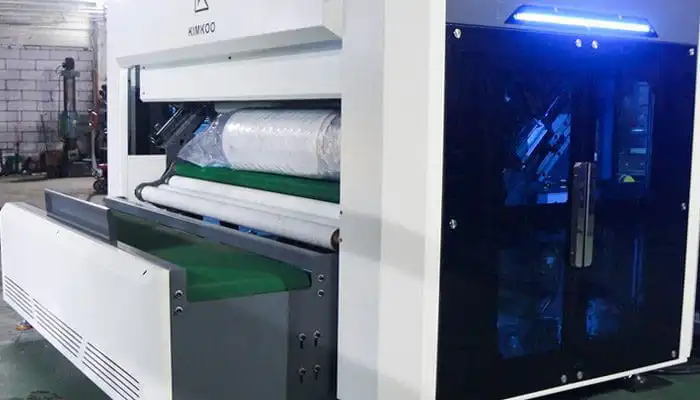

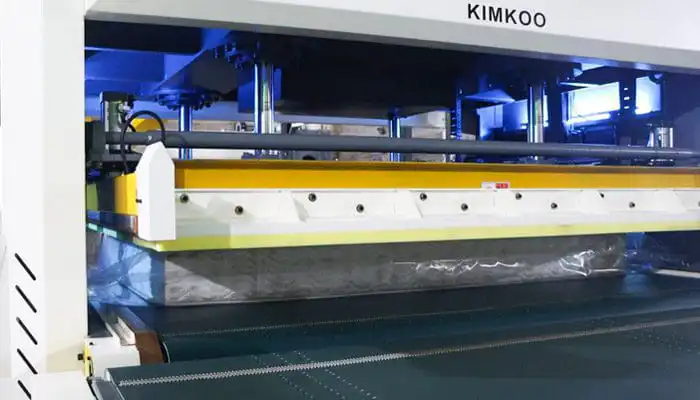

Two types of film are used during the process. A polyethylene film in the compression stage locks the mattress in its flattened form, while a stretch film is applied during the roll cage stage to maintain the rolled shape and finalize the packaging. These films are available through KIMKOO.
Most foam and latex mattresses are compatible with compression packaging, as well as pocket coil mattresses without wire rims. Since every mattress construction is unique, the best way to confirm compatibility is to arrange a test with KIMKOO by sending a product sample to their facility.
|
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-CR4 |
Packaging Efficiency |
Up to 100 mattresses/hour |
|
Exit Diameter Range of the Mattress |
230 - 450 mm (Adjustable) |
Max. Mattress Size (L × W × H) |
2200 mm × 2100 mm × 500 mm |
|
Hydraulic Pressure |
100 Tons |
Compression Height Range (Press Plate Stroke) |
100 mm – 500 mm |
|
Package Materials |
PE or PVC roll film, and stretch film (used for the roll-packing system) |
Control System |
SIEMENS touchscreen panel & PLC control |
|
Oilpump Power |
7.5 KW |
Total Power |
45 KW |
|
Air Requirment |
0.3m³/min 0.6 - 0.8 MPa |
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
|
CE Certificate |
Yes |
Heat Sealing Power |
3 KW |
|
Total Weight |
12000 KG |

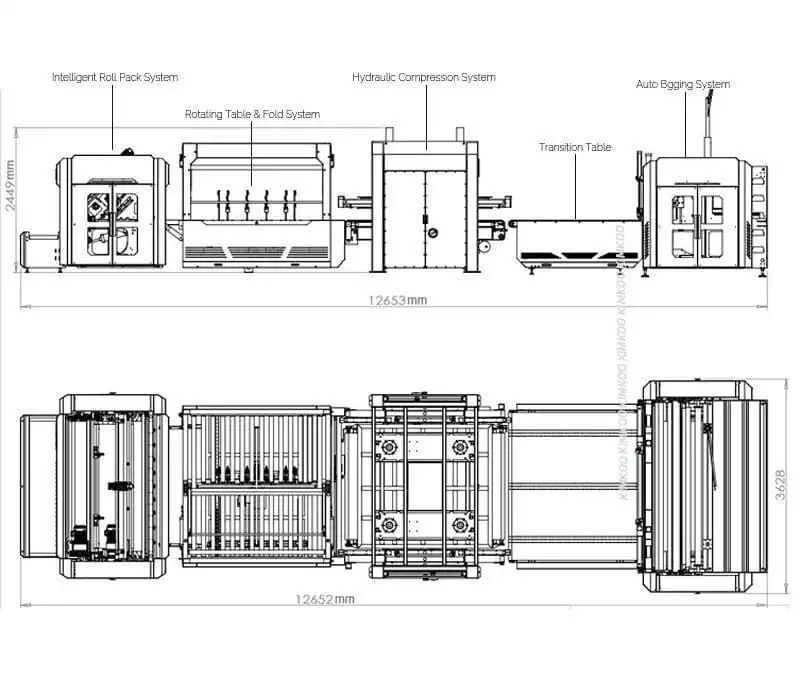

Machine Dimension (L,W,H) |
13000 mm × 3450 mm × 2600 mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 45 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
Sea freight is the primary shipping method we use because it is the most cost-effective and reliable option for transporting large or bulk machinery. No matter which country you are in, sea freight can usually reach a nearby port—even if the local sea transport infrastructure is limited or less efficient.
Once the shipment arrives at your destination port, the shipping line will notify you to pick it up. You can simply ask your local forwarder or customs broker to handle the port clearance and truck the machinery back to your factory.
For customers within China, we typically ship machinery by land freight, including heavy trucks, semi-trailers, or railway transport.
For overseas customers, land freight is only possible if your country is physically connected to mainland China. While trucks and semi-trailers can generally transport machinery only up to the border, the key factor for cross-border delivery is whether a railway route exists to your country, or at least to a nearby transfer point where the cargo can then continue by truck into your region.
Air freight is generally not suitable for our machinery because the equipment is too large to fit into standard cargo planes. Even if the size allows, the shipping cost would be extremely high and impractical.
Instead, we use air freight mainly for shipping documents (such as B/L copies, invoices, packing lists) or for sending small spare parts, accessories, or consumables that customers may need urgently.
