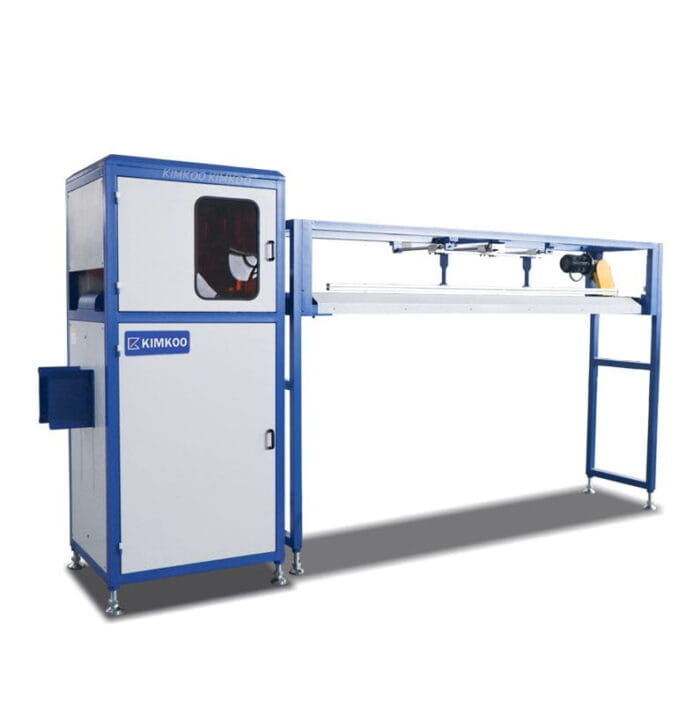

Pocket Spring Cutting Machine

The pocket spring cutting machine slices long spring strips—produced by pocket spring coiling machines—into individual rows for easy use in semi-automatic pocket spring assembly or resale to mattress makers. Compatible with both straight and drum-shaped strips, it ensures clean, precise cuts for efficient mattress unit production.

Add to compare

Size and packaging guidelines

Fermentum scelerisque hendrerit parturient nullam enim lobortis litora parturient dictumst.

Potenti a quisque tincidunt venenatis adipiscing parturient fermentum nisl tincidunt amentu.

Scelerisque conubia lobortis a condimentum ad eleifend dui integer maecenas habitant nostra.

Specification	Chair	Armchair	Sofas
Height	37"	42"	42"
Width	26.5"	32.5"	142"
Depth	19.5"	22.5"	24.5"
Assembly Required	No	No	Yes
Packaging Type	Box	Box	Box
Package Weight	55 lbs.	64 lbs.	180 lbs.
Packaging Dimensions	27" x 26" x 39"	45" x 35" x 24"	46" x 142" x 25"

Category: Pocket Spring Machines Tags: Pocket Coil Row Cutting Machine, Pocket Spring Cutter, Pocket Spring Cutting Machine, Pocket Spring Row Cutting Machine, Pocket Spring Strip Cutting Machine Brand: KIMKOO

Core Functions

Touchscreen Panel & PLC Control
Equipped with a user-friendly touchscreen and advanced PLC system for stable, intelligent control—easily sets spring size, cutting quantity, and cutting speed.

Accurate Counting & Detection System
Integrated sensors enable real-time counting and anomaly detection—ensures precise spring strip calculation and immediate fault identification.

Dual-Side Push-Out Mechanism
Features a push-out device that discharges cut spring strips to both sides, with elevated design for stacking more strips efficiently on both ends.

Ultrasonic Cutting Technology
Applies ultrasonic cutting for clean, precise, and sealed edges—ensures minimal deformation, no fraying, and smooth results on non-woven fabric.

Finished Spring Strips After Cutting

Description

This pocket spring cutting machine is specially designed to cut both straight and drum-shaped pocket spring strips into individual spring rows of required lengths, making it an essential solution in the pocket spring mattress production process.

When manufacturing pocket springs using a pocket spring manufacturing machine, and if the downstream pocket spring assembly machine does not include a built-in cutting function—as is the case with our semi-automatic pocket spring assembly machine—this cutting machine becomes a necessary addition. In such setups, the long, continuous rows of pocket springs must be manually loaded and fed into the assembly machine, which can only accept pre-cut spring strips. This is where the pocket spring cutting machine provides the perfect solution by efficiently segmenting the spring rows in advance.

Engineered for seamless integration, the machine can be used alongside automatic digital pocket spring manufacturing machines and automatic pocket spring assembly machines, ensuring a smoother and more streamlined production line. Once the spring strips are cut, they are automatically pushed out to both sides, simplifying handling and improving productivity.

This machine is mainly used in conjunction with the semi-automatic pocket spring assembly machine, manually feeding cut spring strips for gluing into complete spring units.

Features

➤ High Cutting Efficiency – Delivers fast and consistent cutting performance with a capacity of up to 25 cuts per minute, ensuring high productivity for large-scale production needs.
➤ Versatile Spring Compatibility – Compatible with both cylindrical and barrel-shaped pocket springs, and adaptable to various pocket spring heights and diameters for greater flexibility in mattress design.
➤ Ultrasonic Cutting Function – Features an ultrasonic cutting system that delivers precise, clean cuts while minimizing material fraying and waste, helping reduce fabric consumption and improve overall cutting quality.
➤ Accurate Electronic Counting System – Features a highly sensitive electronic counting device that ensures precise tracking and detection during operation, supporting efficient and accurate workflow management.
➤ User-Friendly Operation – Designed for ease of use with intuitive controls and easy mechanical adjustment, reducing operator training time and simplifying daily operation.
➤ Simultaneous Calculation and Detection – Capable of performing spring quantity calculations and defect detection at the same time, improving both efficiency and quality control.
➤ Multilingual Program Interface – The control system supports customized programming in multiple languages, making it convenient for international users and diverse production teams.
➤ Customizable Design Options – Offers open support for reasonable customization requests, allowing the machine to be tailored to unique production needs or factory layouts.
➤ Trusted Manufacturing Quality – Backed by over 17 years of industry experience, the machine is built with reliable components and solid engineering to ensure long-term durability, stable performance, and worry-free operation.

Technical Specification
Model	JK-SC1	Cutting Efficiency	25 cuts/min (25 strips/min)
Interval Between Pocket Springs	More than 1 piece	Air Requirment	0.3m³/min 0.6 MPa
Voltage	3-Phase, 380V, 50Hz (Customizable)	Total Power	3 KW
CE Certificate	Yes	Total Weight	900 KG
Machine Dimension (L × W × H)	4200 mm × 850 mm × 2050 mm
Material Specification
Pocket Spring Height	80 mm - 250 mm	Spring Central Dia.	Ø40 mm - Ø76 mm

About brand

KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.

At KIMKOO, we provide more than machines—we deliver complete solutions. From custom design to technical support and after-sales service, our team helps clients improve efficiency and reduce production costs. KIMKOO’s machines are trusted by mattress manufacturers across Europe, Asia, the Middle East, Africa, North and South America, offering global support with local care.
