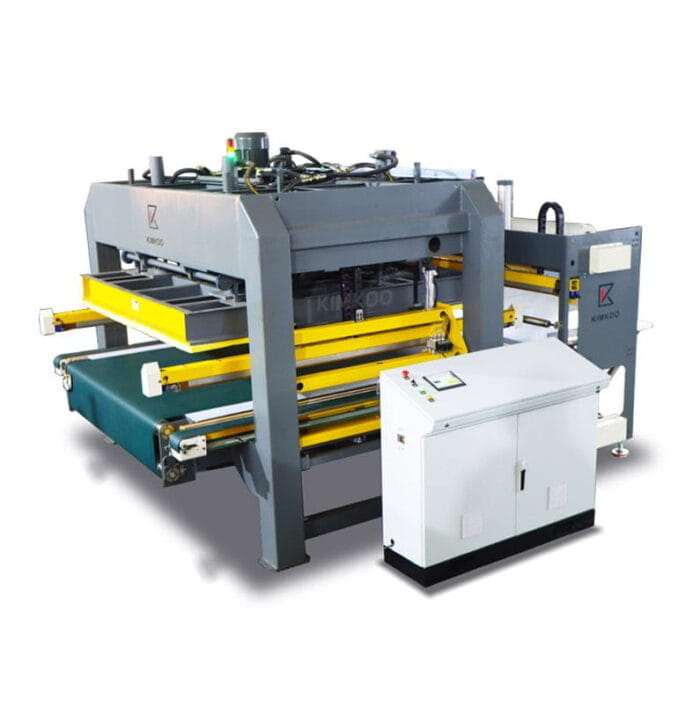

Mattress Compression Machine (auto bagging + conveyor)

This mattress compression machine with auto bagging and vacuum compression efficiently wraps foam, spring, and latex mattresses into compact, airtight packages. The standard model features a maximum compression height (press plate stroke) of 480 mm. For thicker items like foam blocks, stacked foam layers, and sofas, a customizable maximum 1000 mm stroke option is available. Designed to streamline packaging, reduce material use, and easily integrate into automated production lines.

Add to compare

Category: Sofa, Foam & Mattress Compression Packing Machines Tags: Foam Mattress Bagging Compression Machine, Mattress Auto Bagging Compression Machine, Mattress Bagging Compression Machine, Mattress Bagging Vacuum Compression Machine, Mattress Film Bagging Compression Machine, Spring Mattress Bagging Compression Machine Brand: KIMKOO

Description

This high-efficiency mattress compression machine is designed for compressing and bagging spring, foam, and latex mattresses—making them significantly more compact for storage and shipping. Featuring fully automated bagging and an anti-static conveyor system, it streamlines the packaging process, reduces material costs, and integrates seamlessly into your production line.

With its auto bagging functionality, you no longer need to stock custom-sized PE or PVC bags. Instead, the machine uses standard PE or PVC film rolls (one on top and one below) to automatically create perfectly sized bags based on each mattress’s dimensions. Once a mattress is gently pushed into the machine, it is automatically wrapped, heat-sealed, and compressed. The conveyor belt, made with anti-static material, allows smooth integration with upstream equipment such as mattress roll packers and labeling systems.

The entire compression and packaging process takes only 45 seconds, including three rounds of heat sealing to ensure airtight packaging. Once sealed, the mattress is compressed and ready to be packed into wooden frames—dramatically increasing the number of mattresses that can fit into a single shipping container.

This system is designed for long-term, precision performance, featuring a PLC control system and SIEMENS electrical components to ensure reliability and ease of use.

Features

Seamless Production Line Integration —— Equipped with an anti-static conveyor belt, this machine connects directly to existing production lines and downstream equipment, supporting continuous, automated packaging workflows.
Auto Bagging System —— Uses three powerful sealing bars to heat-seal and form perfectly sized PE or PVC bags from film rolls—no need for pre-made bags. Cuts costs and simplifies inventory.
Space-Saving Compression —— Reduces mattress volume by up to 90%, saving significant space during storage and transport.
Fast Cycle Time —— Completes wrapping, sealing, and compression in as little as 45–55 seconds per mattress.
Damage-Free Compression —— Maintains mattress integrity—compressed mattresses regain their original shape within 3 seconds of unpacking without distortion.
Touchscreen PLC Control —— Easy-to-use touchscreen interface with reliable SIEMENS components offers stable performance and intuitive operation.
Protective & Airtight Sealing —— Creates a strong, airtight seal to prevent air leakage and protect the mattress from moisture and dust during transport and storage.
Cost-Effective Packaging —— Only one PE or PVC film roll set needed per machine. Produces waterproof and dustproof packaging, cutting down overall logistics costs.
High Compression Force —— Delivers up to 50 tons of pressure, suitable for compressing a wide range of mattress types while ensuring consistent quality.
Wide Mattress Compatibility —— Efficiently compresses foam blocks, mattresses, and various resilient products—making it ideal for manufacturers looking to reduce the volume of bulky, reboundable items.
Enhanced Operational Stability —— Features a robust 4-hydraulic cylinders structure, guaranteeing even, smooth compression every time.
Customizable Design —— Available with customizable press plate sizes and lifting strokes to match different mattress dimensions.
Trusted Manufacturing Quality —— Backed by over 17 years of experience in the industry, ensuring dependable performance and professional-grade construction.

Integrated Control and Packaging System

Powerful Sealing Bar
Delivers strong, airtight, and reliable sealing. The high-performance heat system tightly seals PE or PVC bags to prevent air leakage and mattress rebound during storage or transport. It maintains consistent temperature and pressure for lasting protection against dust, moisture, and compression failure—even in high-output environments.

Touchscreen PLC Control
Features an intuitive touchscreen PLC system with high-quality SIEMENS components for smooth, stable, and smart operation. It simplifies parameter settings, improves accuracy, reduces errors, and ensures reliable performance in continuous, high-efficiency production.

Anti-Static Conveyor Belt
Built-in anti-static conveyor ensures smooth, continuous flow and easy integration with downstream equipment like roll packers or bagging stations. It reduces manual handling, minimizes static issues, and boosts packaging efficiency and workflow stability.

Complete Your Mattress Packaging Line with Optional Roll Packing Machines

If compression alone meets your needs, this machine is sufficient. But if roll packing is required, the following machines offer an economical and efficient solution to complete your packaging line.

Add to compare

Foam Mattress Roll Packing Machine (Fixed Diameter)

Mattress Packaging Machines

Designed for foam, latex, and sponge mattresses ≤30KG/M³, this roll packing machine creates compact, secure rolls in 35 seconds—perfect for saving space and shipping costs.

Quick view

Single-Axis Roll Packing Machine Mattress

Add to compare

Single-Axis Mattress Roll Packing Machine

Mattress Packaging Machines

The single-axis mattress roll packing machine is an auxiliary unit designed to work with a mattress compression machine. It rolls pre-compressed mattresses into compact cylindrical packages for easier handling, storage, and shipping. Ideal for foam, latex, and pocket spring mattresses.

Quick view

Technical Specification
Model	JK-C5B	Functional Modules	Auto Bagging Unit, Conveyor System
Efficiency	45 - 55 seconds per unit	Hydraulic Pressure	50 Tons
Supported Mattress Dimensions	Length: 1800–2200 mm Width: 800–2200 mm Height: 50–480	Conveyor	Anti-Static Conveyor Belt
Max Compression Height (Press Plate Stroke)	Standard Model (480mm Height) Customized Model (1000mm Height)	Number of Hydraulic Cylinders	4 hydraulic cylinders
Compression Plate Dimensions	2200 mm × 2200 mm	Number of Air Cylinders	4 pcs
Hydraulic Power	7.5 KW	Heat Sealing Power	3 KW
Conveyor Motor Power	0.75 KW	Total Power	14.5KW
Voltage	3-Phase, 380V, 50Hz (Customizable)	Air Requirment	0.3m³/min 0.8MPa
Total Weight	3000 KG	Machine Dimension (L,W,H)	5000 mm × 3600 mm × 2500 mm
