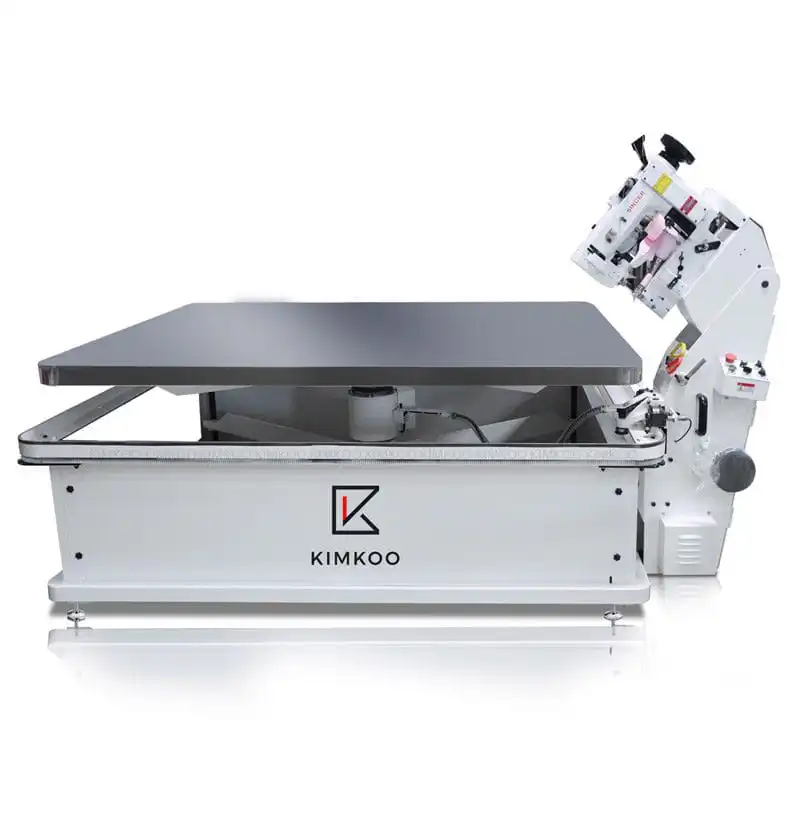

The electronic drive mattress tape edge machine is designed to efficiently sew the upper and lower fabrics of mattresses, as well as the side edge materials, and adopts the Singer 300U sewing head for enhanced precision and performance. This high-performance machine is essential for mattress manufacturing and assembly line production, offering fast and precise results with minimal labor involvement. The automatic height adjustment feature of the machine head ensures compatibility with mattresses of various heights, while the machine’s user-friendly controls and advanced features make it ideal for improving productivity and reducing operator fatigue.
The tape edge section is a crucial stage in mattress production, as it forms the finished edge that connects the top, bottom, and side panels of the mattress—directly impacting both the final product's appearance and durability.
The electronic drive mattress tape edge machine is designed to efficiently sew the upper and lower fabrics of mattresses, as well as the side edge materials, and adopts the Singer 300U sewing head for enhanced precision and performance. This high-performance machine is essential for mattress manufacturing and assembly line production, offering fast and precise results with minimal labor involvement. The automatic height adjustment feature of the machine head ensures compatibility with mattresses of various heights, while the machine's user-friendly controls and advanced features make it ideal for improving productivity and reducing operator fatigue.
This electronic drive mattress tape edge sewing machine adopt chain stitch sewing head. Shortly, chain stitch is a more advanced sewing technique in which a series of looped stitches form a chain like pattern. This is one of the most common sewing methods in modern times. Even if the sewing is wrong or the sewing effect is not satisfying, it can be easily disassembled for resewing by pulling one of the threads . Accordingly, compared with lock stitch, it is more convenient and has more advantages.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-T3 |
Sewing Efficiency |
16-18 pcs/hour |
|
Sewable Mattress Thickness |
20mm - 500mm |
Workingtable Lifting Range |
0mm - 280mm |
|
Working Table Size (W,L) |
1.5x2m, 1.6x2m(standard configuration), and 1.8x2m, |
Adjustable Angle of Sewing Head |
adjustable between 30° - 55° degrees |
|
Sewing Head Option |
SINGER 300U(Standard Configuration), TYPICAL & PFAFF 5625 |
Certification |
RoHS, ISO, CE |
|
Voltage |
3-Phase, 380V 50Hz (Customizable) |
Total Power |
1.5KW |
|
Total Weight |
580kg |
Machine Dimension (L,W,H) |
2380mm × 1400mm × 1650mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 30 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
We offer several flexible payment methods to suit your business needs:
KIMKOO offer multiple types of pocket spring assembly machines — some can connect with 2 coilers, and others up to 3. Freely combine with pocket spring coiling machines of different speeds. Easily set up a 1-to-1, 1-to-2, or 1-to-3 production line to match your capacity. Customize your setup today!
