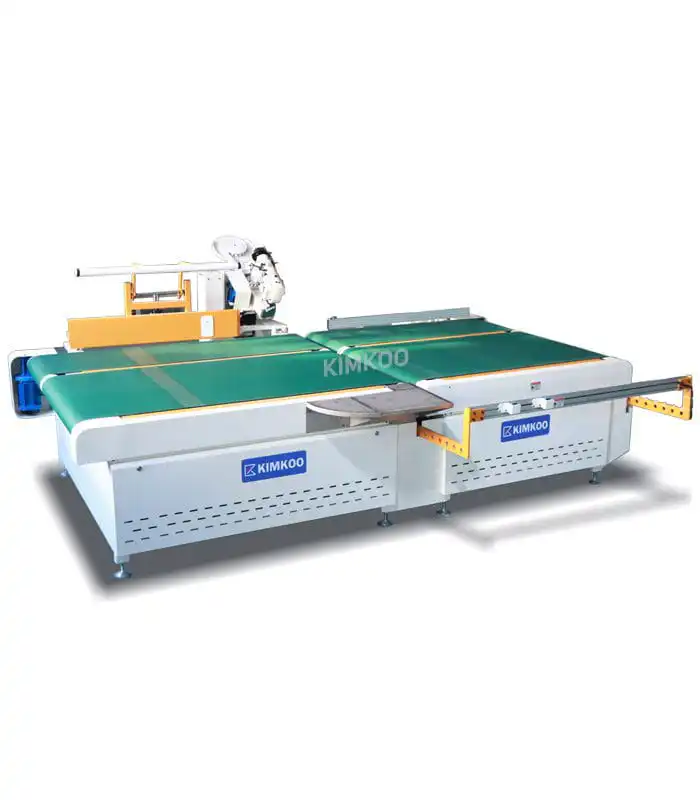

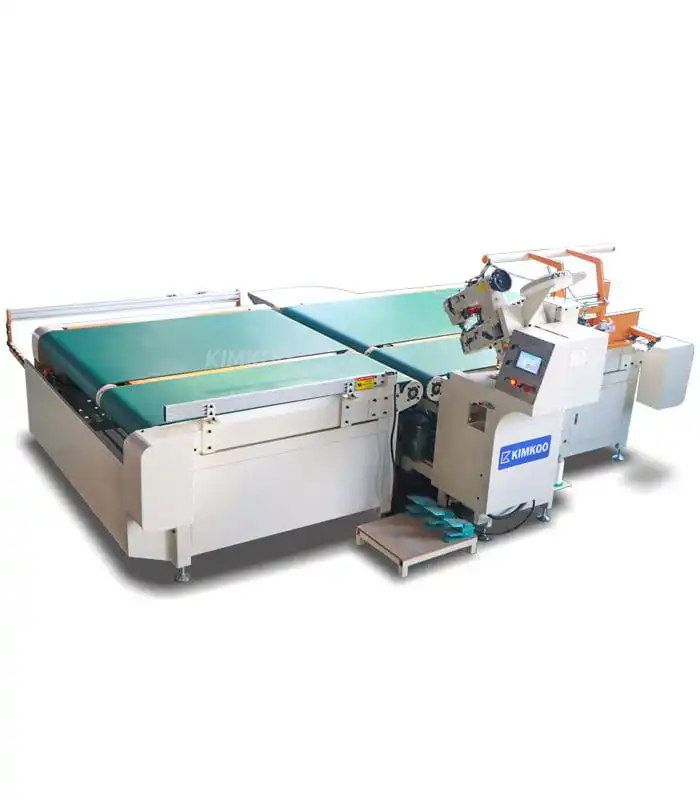

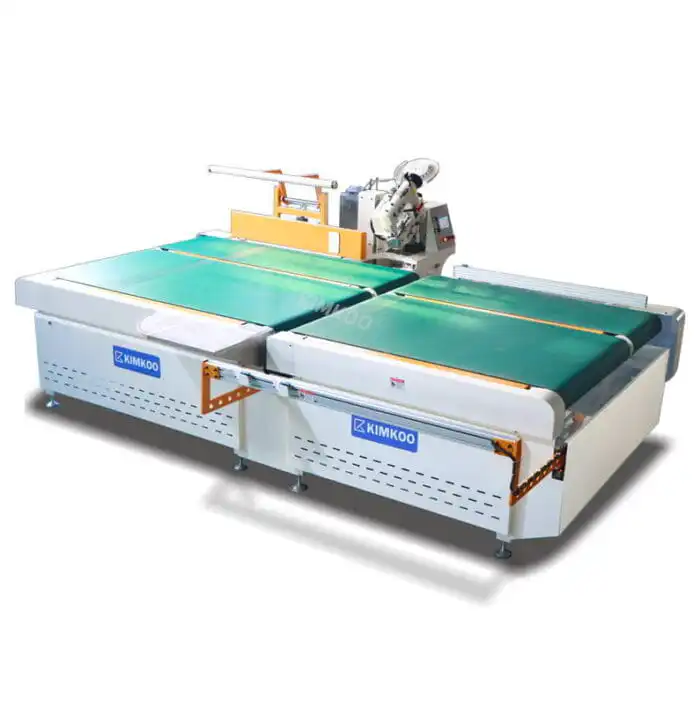

Automatic mattress tape edge machine with heavy-duty SINGER 300U head, high-speed sewing, and auto flipping for efficient, continuous mattress edge finishing.

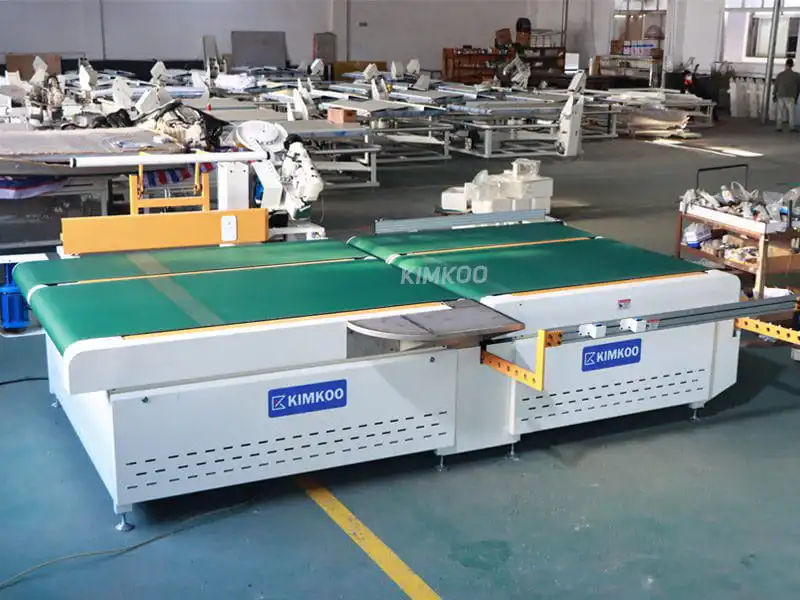

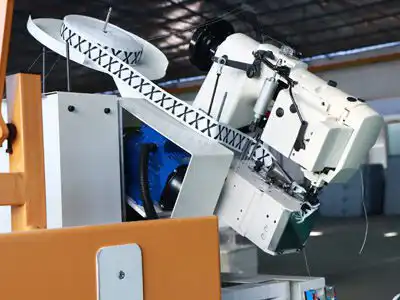

The Automatic Mattress Tape Edge Machine features a Heavy-Duty SINGER 300U high-speed chain stitch sewing head and provides a specialized sewing solution for mattress manufacturing with automatic flipping. Designed to streamline mattress edge finishing, it uses a fixed sewing head with vertical and angle adjustments to suit different mattress heights and thicknesses. As mattresses move smoothly on synchronized conveyor belts, the machine automatically rotates them 90° at corners and flips them for bottom-side taping, ensuring continuous production without manual handling.

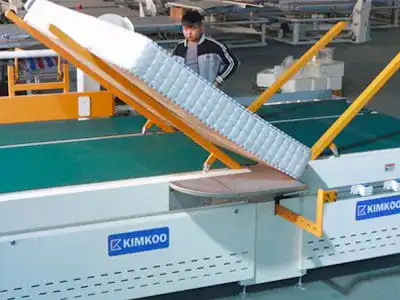

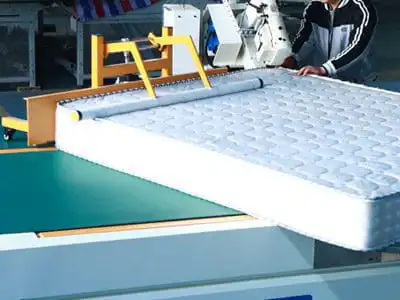

The motorized belt and synchronized rotating arm allow the operator to stay stationary while achieving effortless cornering. Even the heaviest premium mattresses are flipped within seconds, thanks to the heavy-duty flipping system. After tape edging, the adaptable continuous flow system transports the mattress to the next station, maximizing production speed and greatly reducing labor costs.
With its stationary sewing position, the innovative design keeps the sewing head fixed while mattresses move through the machine, eliminating the need for operator movement and enhancing consistency and precision.

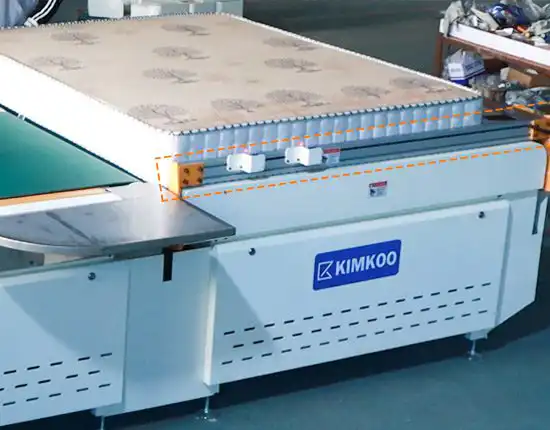

The auxiliary push mechanism intelligently assists in automatically aligning mattresses during the sewing process, eliminating the need for manual repositioning by the operator. This system ensures that each mattress remains perfectly centered throughout the entire taping operation, effectively preventing misalignment that could affect seam quality. By maintaining precise positioning, it not only enhances the overall sewing accuracy and appearance but also significantly reduces operator workload and fatigue, leading to improved productivity and consistency in high-volume production environments.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-T4B |
Sewing Efficiency |
16-18 mattresses/hour |
|
Sewable Mattress Thickness |
50mm - 500mm |
Sewing Head Tilt Angle |
Adjustable from 30° ~ 50° |
|
Working Table Size (L,W,H) |
3800mm × 2000mm × 870mm |
Head Lifting Range |
125mm - 450mm |
|
Air Supply |
0.6 - 0.8Mpa |
Voltage |
3-Phase, 380V 50Hz (Customizable) |
|
Total Power |
4KW |
Total Weight |
1310KG |
|
Machine Dimension (L,W,H) |
4000mm × 2200mm × 1550mm |
