Automates mattress edge sewing and flipping with a SINGER 300U chain stitch head. Boosts productivity with 90° corner turning and PLC-controlled operation.

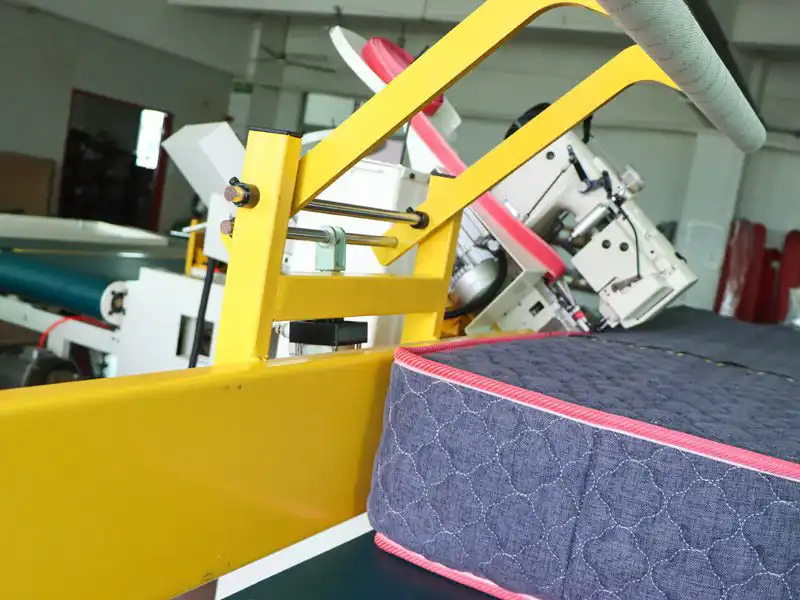

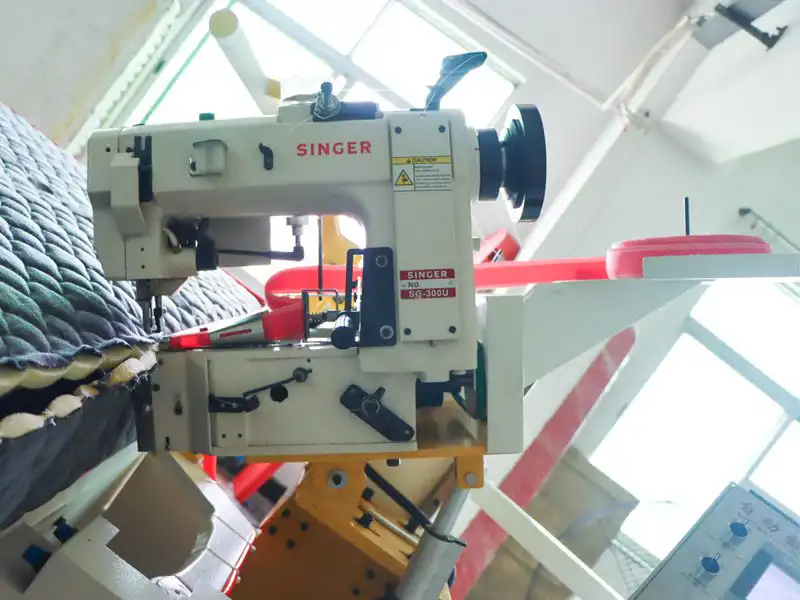

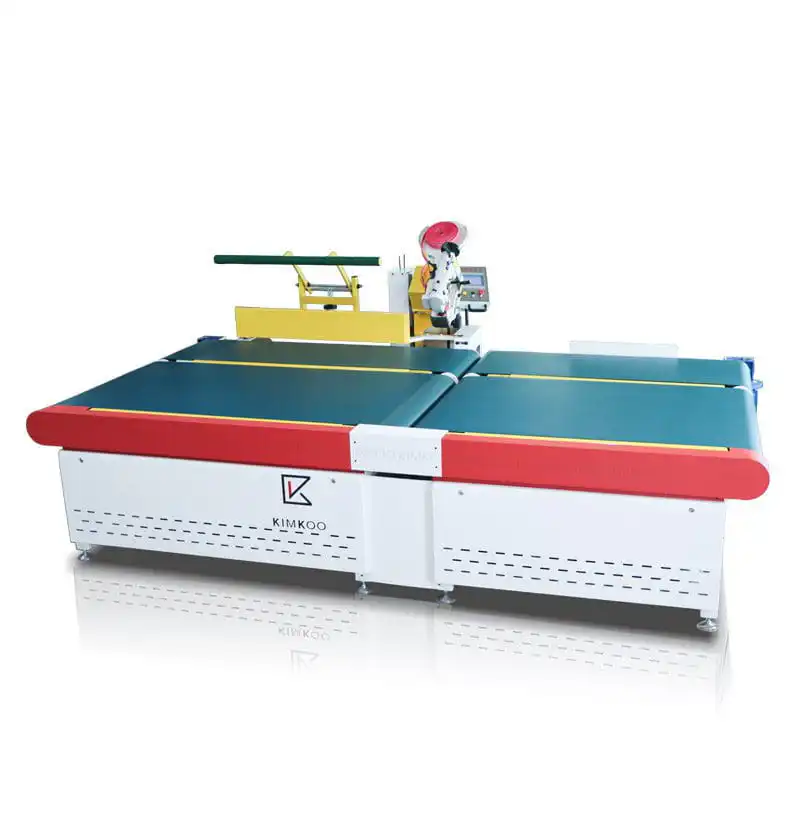

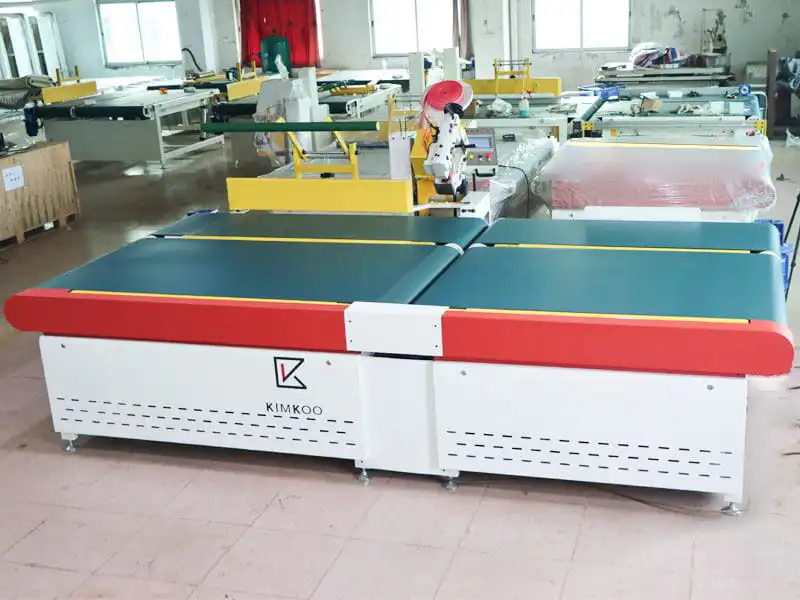

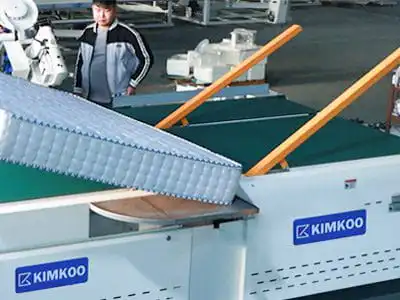

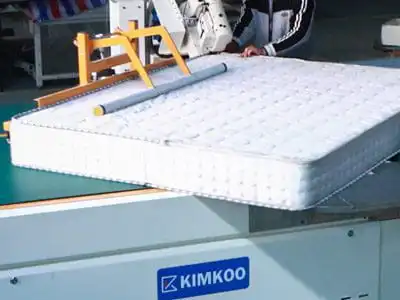

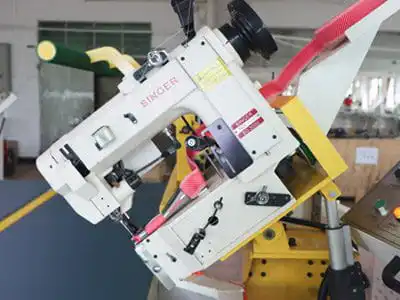

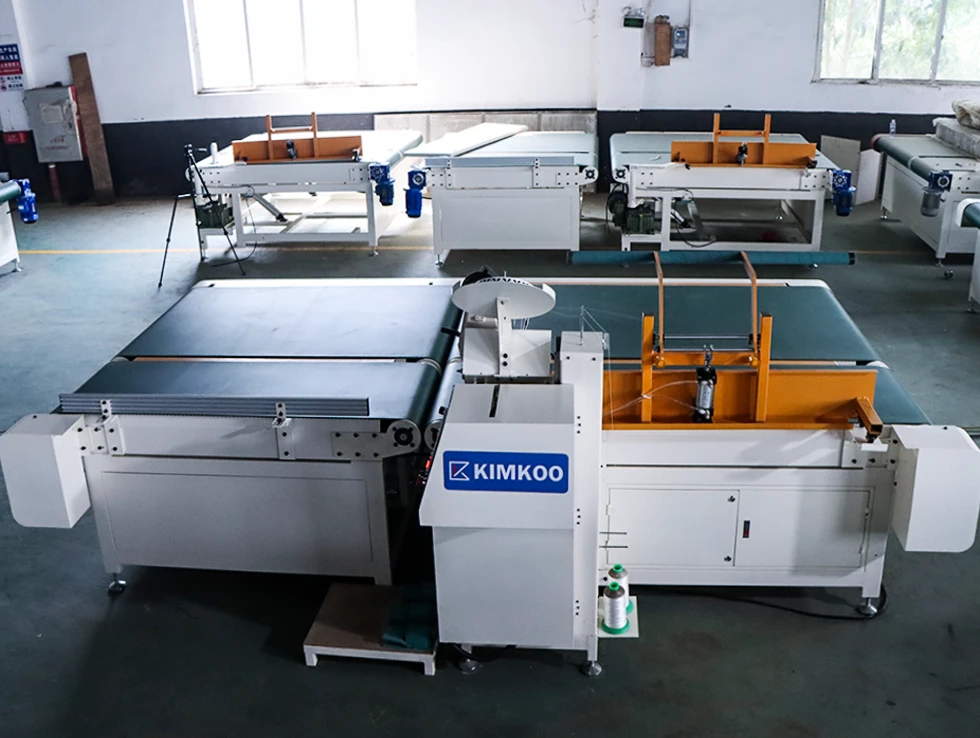

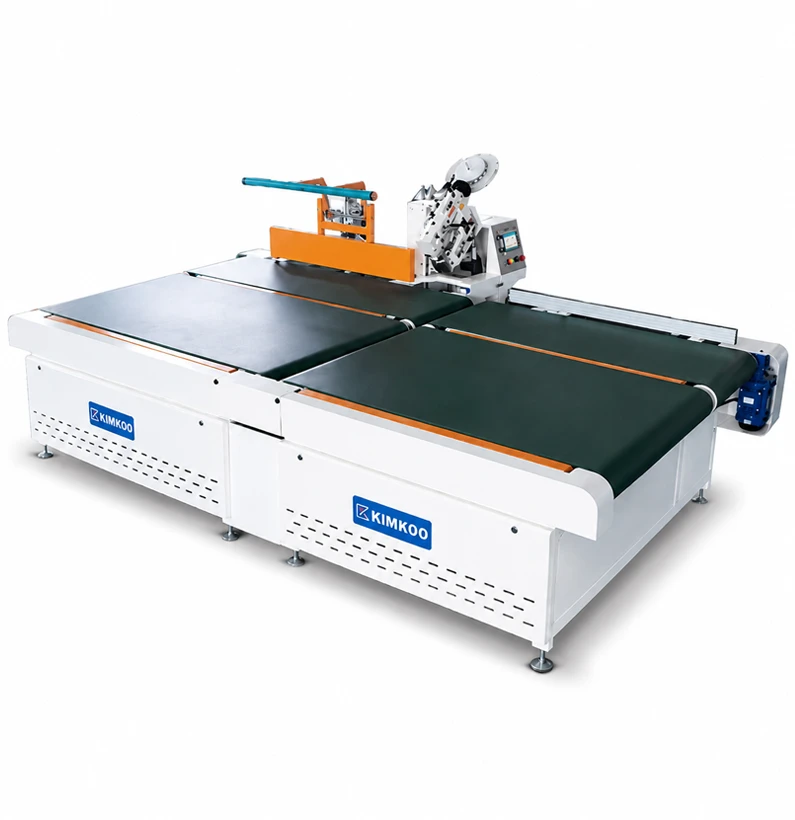

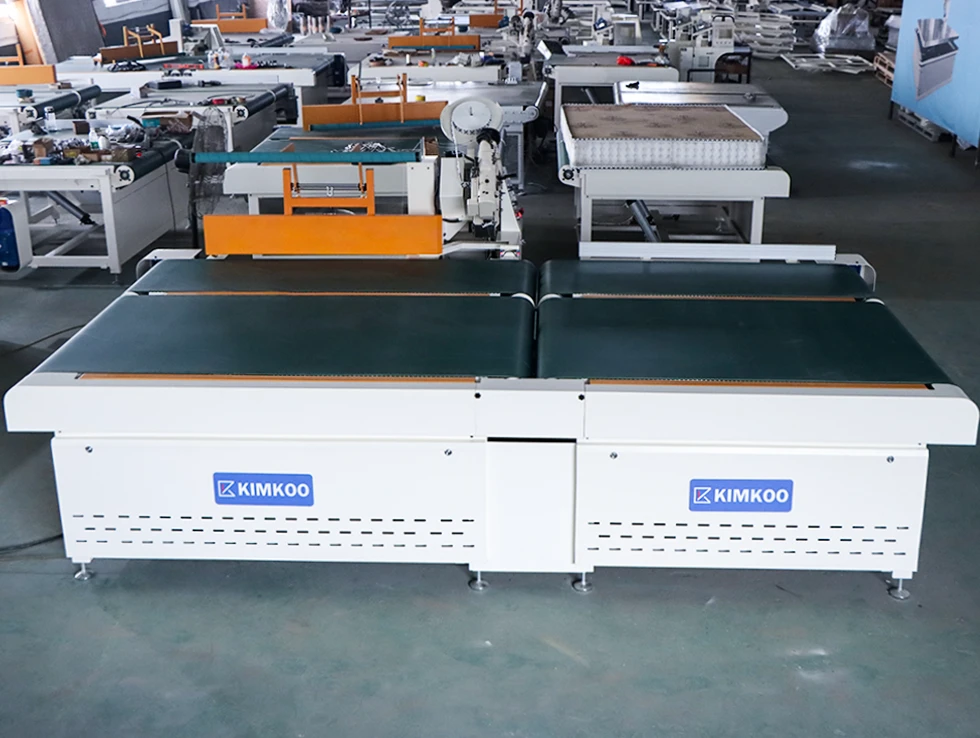

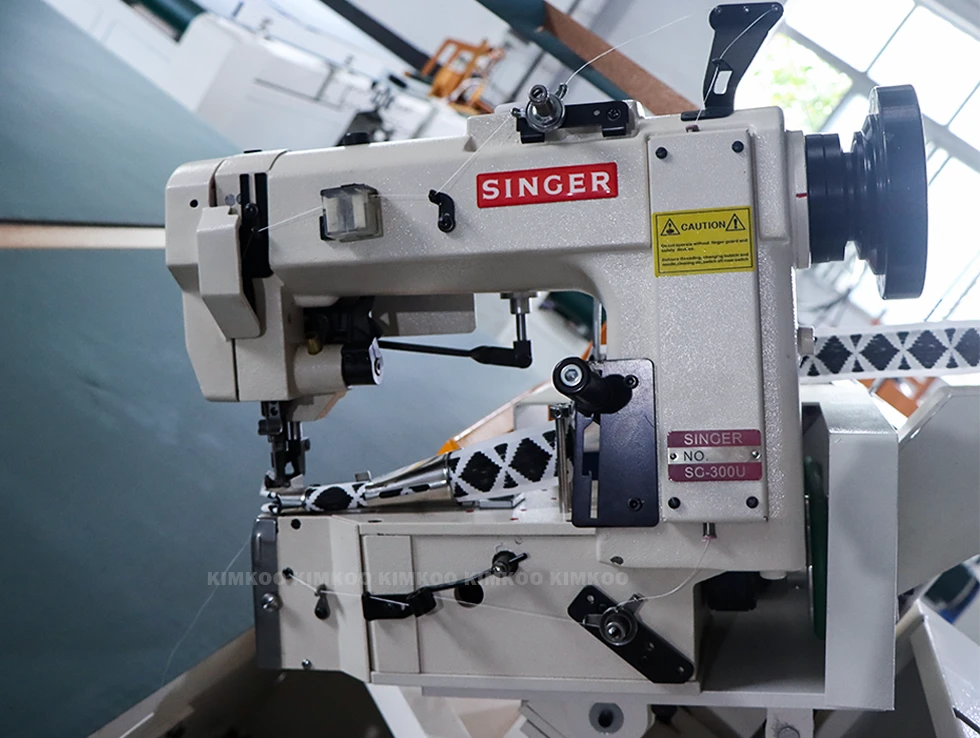

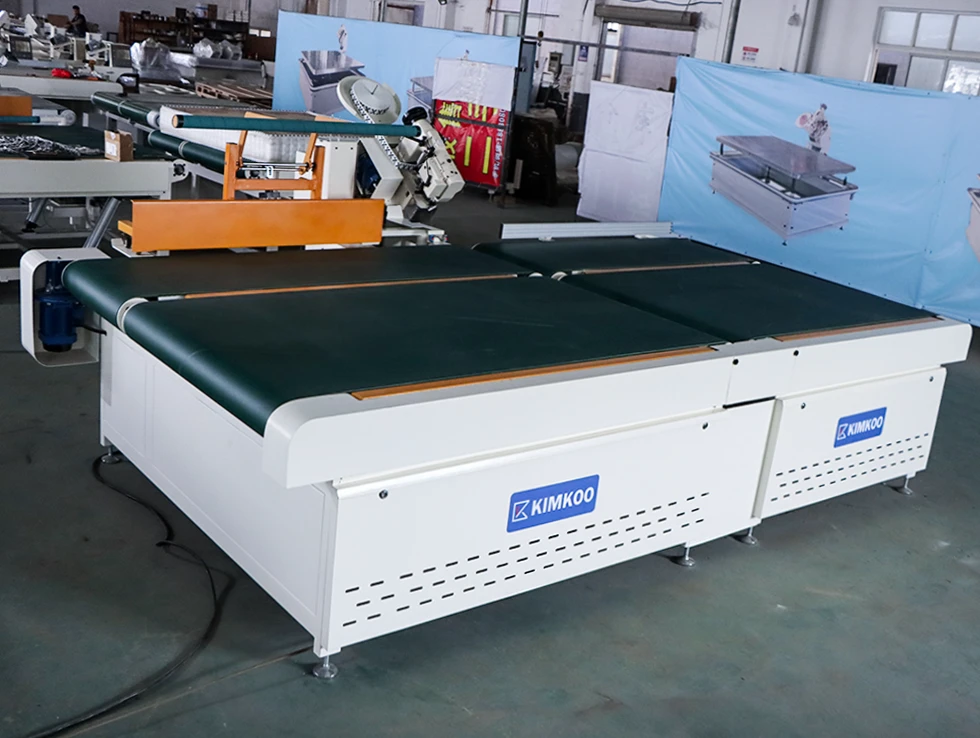

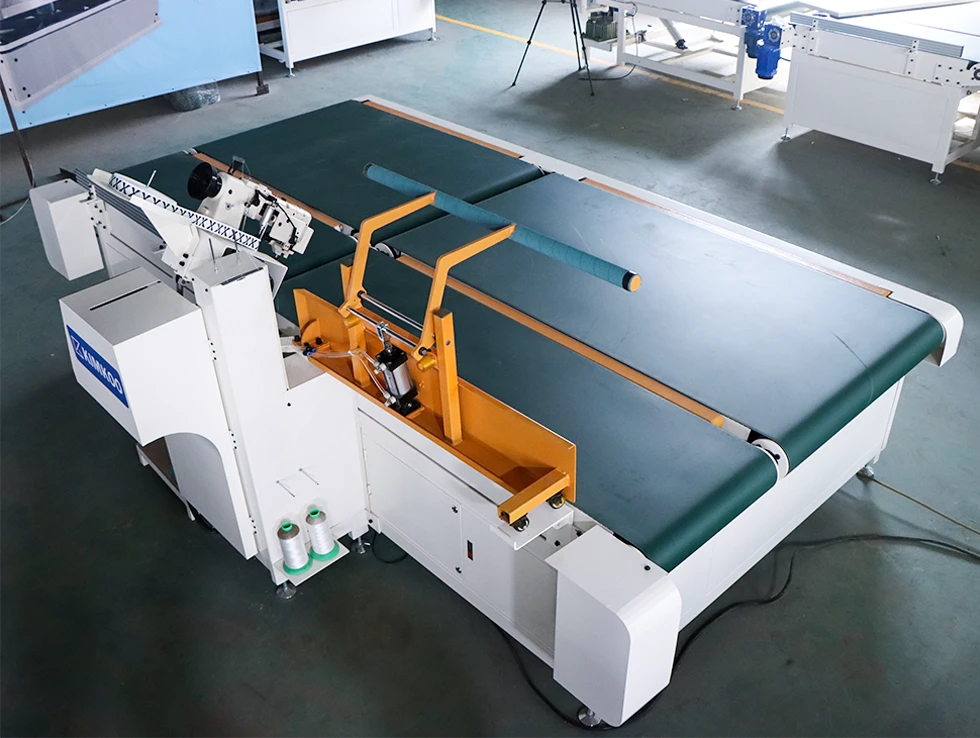

The Automatic Mattress Tape Edge Machine features a Heavy-Duty SINGER 300U high-speed chain stitch sewing head and provides a specialized sewing solution for mattress manufacturing with automatic flipping.Designed to streamline mattress edge finishing, this machine features a fixed sewing head with vertical and angle adjustments to accommodate various mattress heights and thicknesses. As mattresses are moved by synchronized conveyor belts, the machine automatically turns 90° at corners and flips the mattress for bottom-side taping, enabling a continuous flow without manual handling.

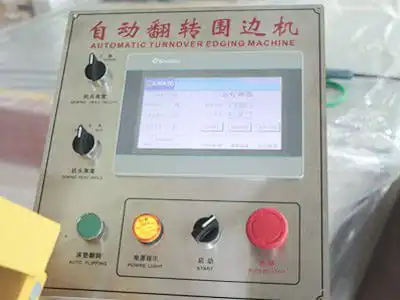

Capable of processing 15–18 mattresses per hour, the system is operated through a sophisticated PLC touchscreen interface, allowing adjustable sewing speeds, automatic height and angle adjustments, and customizable settings. Its electronic sensing system prevents displacement during operation, while the pneumatic foot lift with auto needle-up function ensures efficient and accurate sewing. With its innovative design, only one stationary operator is needed, significantly boosting productivity and reducing labor costs. The Automatic Mattress Tape Edge Machine is a practical solution for enhancing efficiency, achieving consistent quality, and simplifying the mattress production process.
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-T4 |
Sewing Efficiency |
16-18 pcs/hour |
|
Sewable Mattress Thickness |
50mm - 500mm |
Sewing Head Tilt Angle |
Adjustable from 30° ~ 50° |
|
Working Table Size (L,W,H) |
3800mm × 2000mm × 870mm |
Head Lifting Range |
125mm - 450mm |
|
Air Supply |
0.6 - 0.8Mpa |
Voltage |
3-Phase, 380V 50Hz (Customizable) |
|
Total Power |
4KW |
Total Weight |
1300KG |
|
Machine Dimension (L,W,H) |
4000mm × 2200mm × 1550mm |
KIMKOO is a professional brand specializing in the development and manufacturing of mattress machinery. We focus on delivering high-efficiency, intelligent automation solutions for the mattress industry. Our product range covers pocket spring machines, mattress packaging machines, tape edge machines, sofa, foam & mattress compression packing machines, mattress sealing machines, pillow packaging machines, bonnell spring machines, and foam cutting machines — all designed for high performance, long-term reliability, and maximum production value.
When you plan to ship goods from our factory to your location, there are a few important aspects to consider in terms of transport options, delivery times, costs, and payment methods. Here is an overview of the shipping process:
Our nearest export port is Shenzhen Port. Depending on the destination port, the shipping duration can vary. You can inquire with your freight forwarder to determine the exact transit time and costs from Shenzhen to your port. For general reference, shipping by sea typically takes anywhere from 10 to 45 days, depending on the distance, shipping line, and specific routes. We also have established partnerships with reliable freight forwarders, but you're welcome to work with your own agent if you have preferred contacts.
Sea freight is the primary shipping method we use because it is the most cost-effective and reliable option for transporting large or bulk machinery. No matter which country you are in, sea freight can usually reach a nearby port—even if the local sea transport infrastructure is limited or less efficient.
Once the shipment arrives at your destination port, the shipping line will notify you to pick it up. You can simply ask your local forwarder or customs broker to handle the port clearance and truck the machinery back to your factory.
For customers within China, we typically ship machinery by land freight, including heavy trucks, semi-trailers, or railway transport.
For overseas customers, land freight is only possible if your country is physically connected to mainland China. While trucks and semi-trailers can generally transport machinery only up to the border, the key factor for cross-border delivery is whether a railway route exists to your country, or at least to a nearby transfer point where the cargo can then continue by truck into your region.
Air freight is generally not suitable for our machinery because the equipment is too large to fit into standard cargo planes. Even if the size allows, the shipping cost would be extremely high and impractical.
Instead, we use air freight mainly for shipping documents (such as B/L copies, invoices, packing lists) or for sending small spare parts, accessories, or consumables that customers may need urgently.
