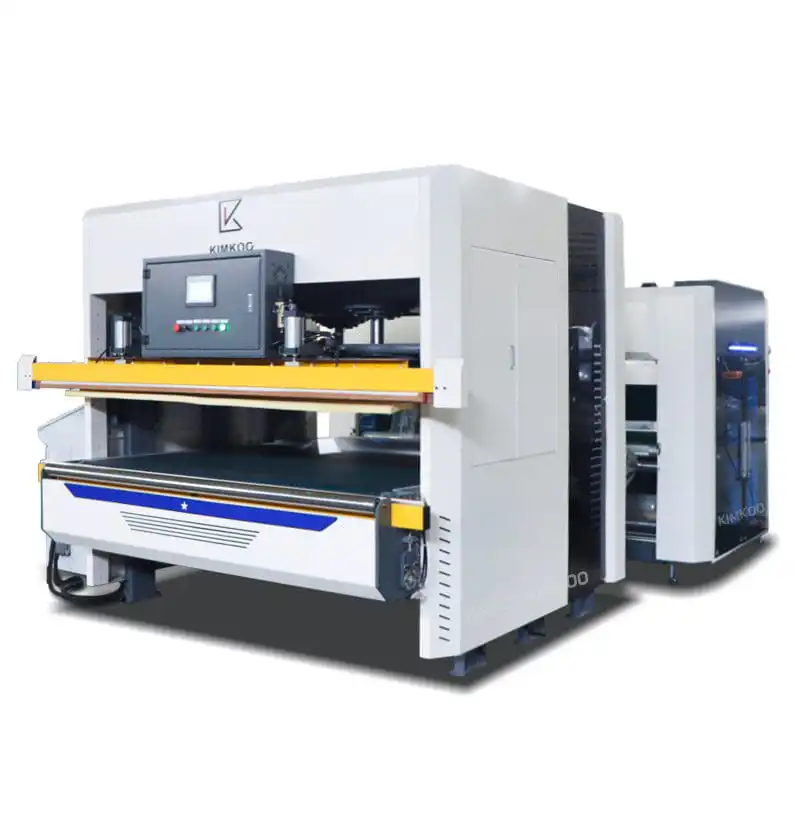

Automatic mattress compression & roll packing machine for foam, latex, and pocket coil mattresses. Compresses volume by up to 90% for easier storage and shipping. Fast 30–35s cycle with airtight sealing and adjustable roll size.

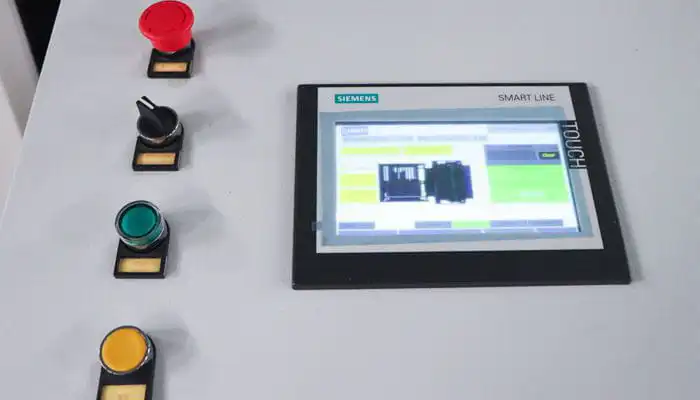

Integrated with a SIEMENS touchscreen and PLC, this control system ensures intelligent, stable operation. Operators can easily configure parameters, independently adjust conveyor belts, and set the desired mattress exit diameter with precision.

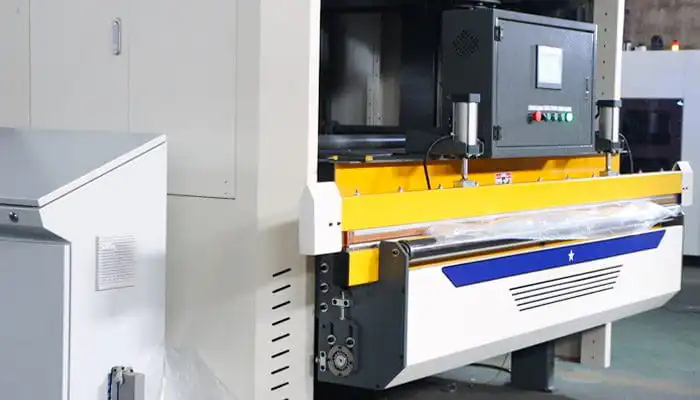

Utilizes up to 100 tons of hydraulic pressure to compress mattresses into a uniform flat profile. The high-performance sealing bar delivers airtight seals on PE or PVC bags, preventing air leakage and maintaining mattress integrity.

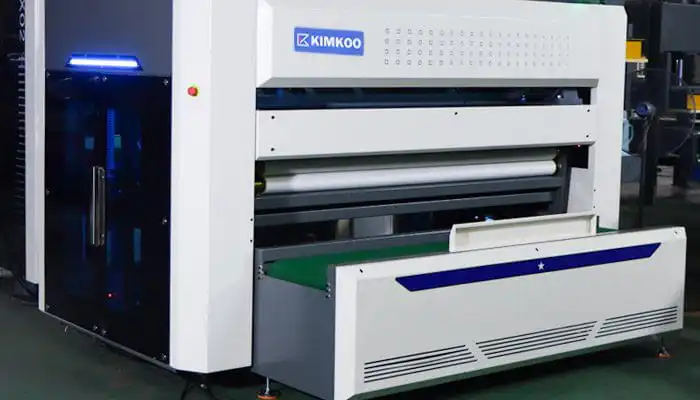

Once compressed, the mattress is automatically rolled with stretch film. The system dynamically adjusts roll diameter according to mattress size, with preset targets set via PLC for accurate, repeatable, and space-saving cylindrical packaging.

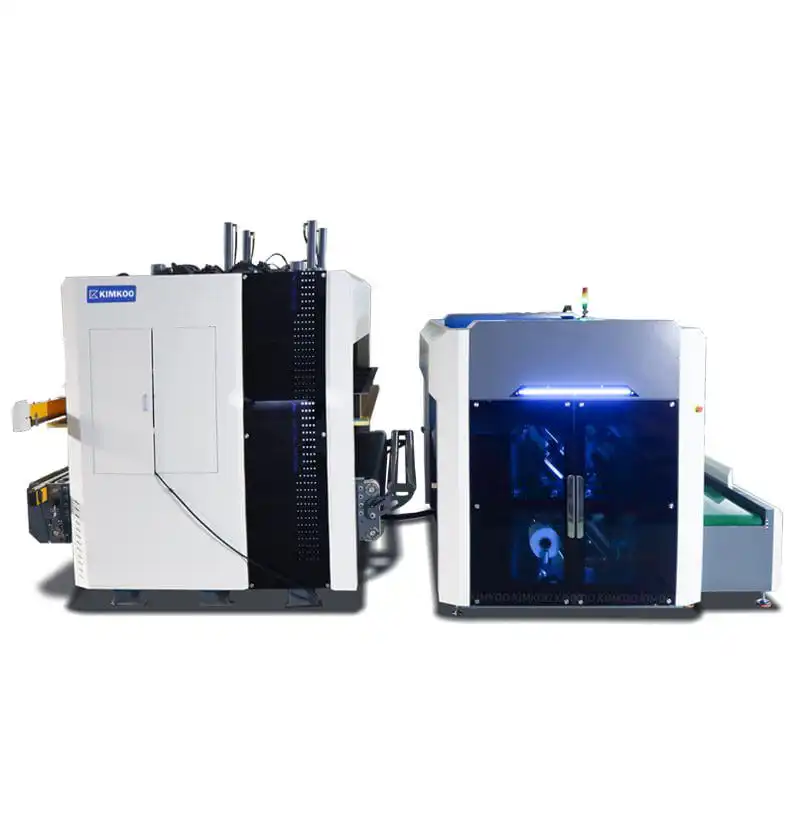

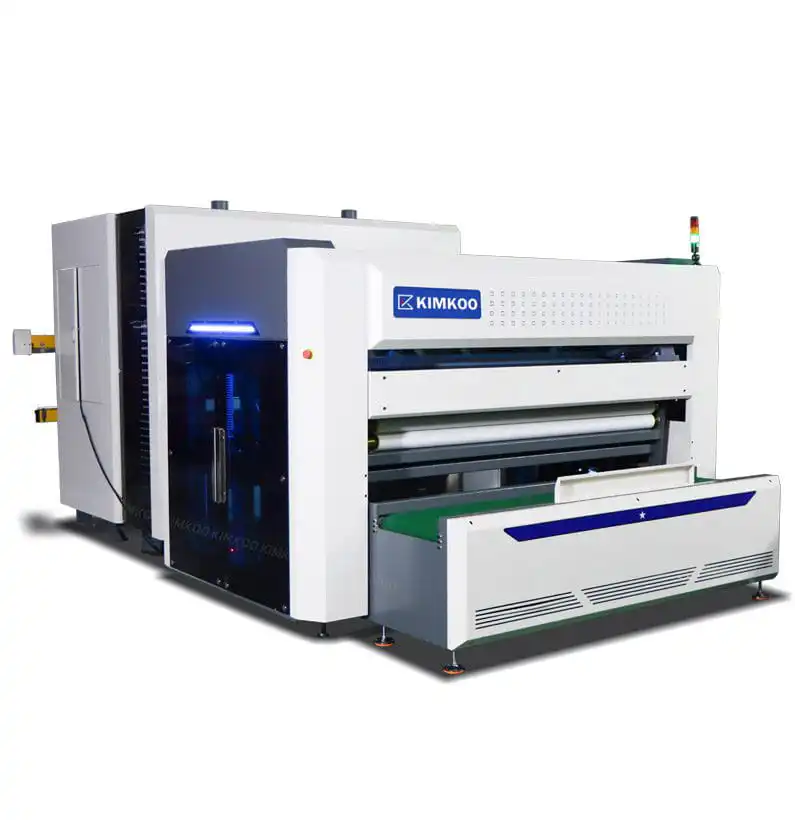

The mattress compression & roll packing machine is engineered to automatically compress and roll-pack foam, latex, and pocket coil mattresses into compact cylindrical shapes—reducing their volume by up to 90% for easier storage and significantly more efficient shipping.
Designed for mattress manufacturers aiming to streamline logistics and cut down on shipping costs, this machine transforms bulky, resilient mattresses into tightly packed rolls ideal for e-commerce platforms, retail stores, and boxed delivery services. It helps maximize warehouse space while ensuring each product arrives safely and professionally packaged.
The operation starts with the manual placement of a mattress into a custom-sized PE or PVC bag. Once positioned on the machine, the mattress is compressed into a flat, dense form. A high-performance heat sealing system then creates an airtight seal to prevent air leakage and rebound, while also shielding the product from dust, moisture, and deformation during transport and storage.

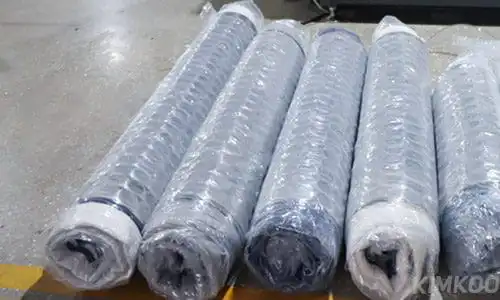

The machine completes the process by automatically rolling the sealed mattress into a compact cylinder, with the roll diameter set according to production needs. The result is a neatly packed mattress that can be easily inserted into a carton—making it easier to handle, store, and ship while maintaining a clean, professional appearance.
|
Technical Specification |
|||
|---|---|---|---|
|
Model |
JK-CR1 |
Packaging Efficiency |
30- 35 seconds per mattress |
|
Exit Diameter Range of the Mattress |
230 - 450 mm (Adjustable) |
Max. Mattress Size (L × W × H) |
2200 mm × 2100 mm × 500 mm |
|
Hydraulic Pressure |
100 Tons |
Compression Height Range (Press Plate Stroke) |
500 mm |
|
Package Materials |
PE or PVC roll film, and stretch roll film |
Control System |
SIEMENS touchscreen panel & PLC control |
|
Oilpump Power |
7.5 KW |
Total Power |
28.7 KW |
|
Air Requirment |
0.3m³/min 0.6 - 0.8 MPa |
Voltage |
3-Phase, 380V, 50Hz (Customizable) |
|
CE Certificate |
Yes |
Heat Sealing Power |
3 KW |
|
Total Weight |
7200 KG |

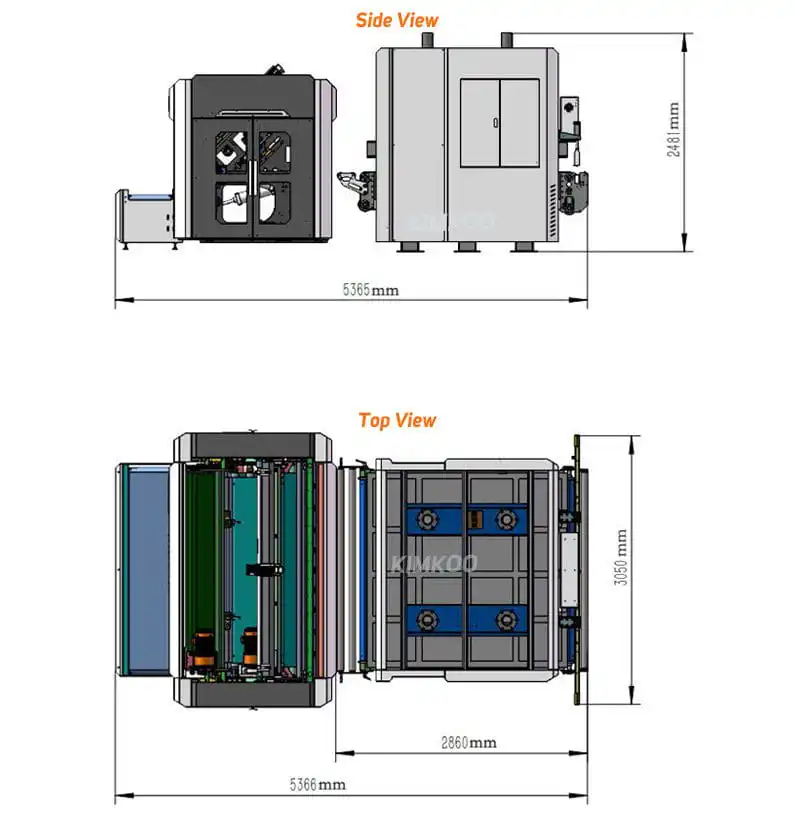

Machine Dimension (L,W,H) |
5500 mm × 3300 mm × 2500 mm |
